Section 2 (Starting System (2GR-FE))
>>
Starting System
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

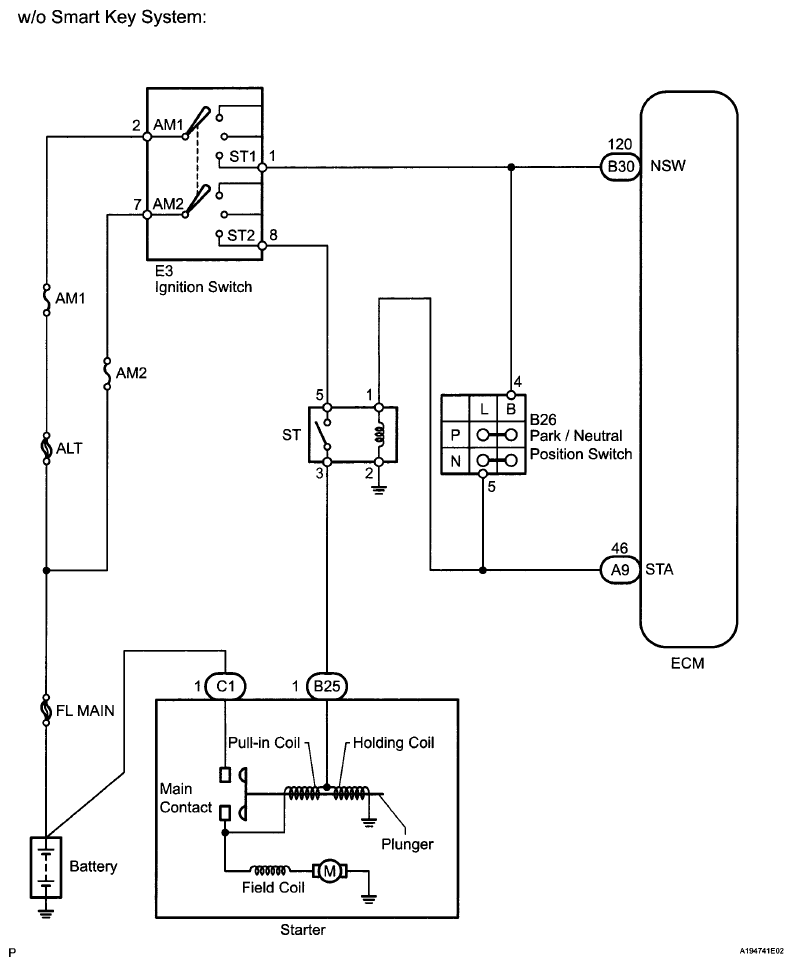

Fig 1: Starting System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

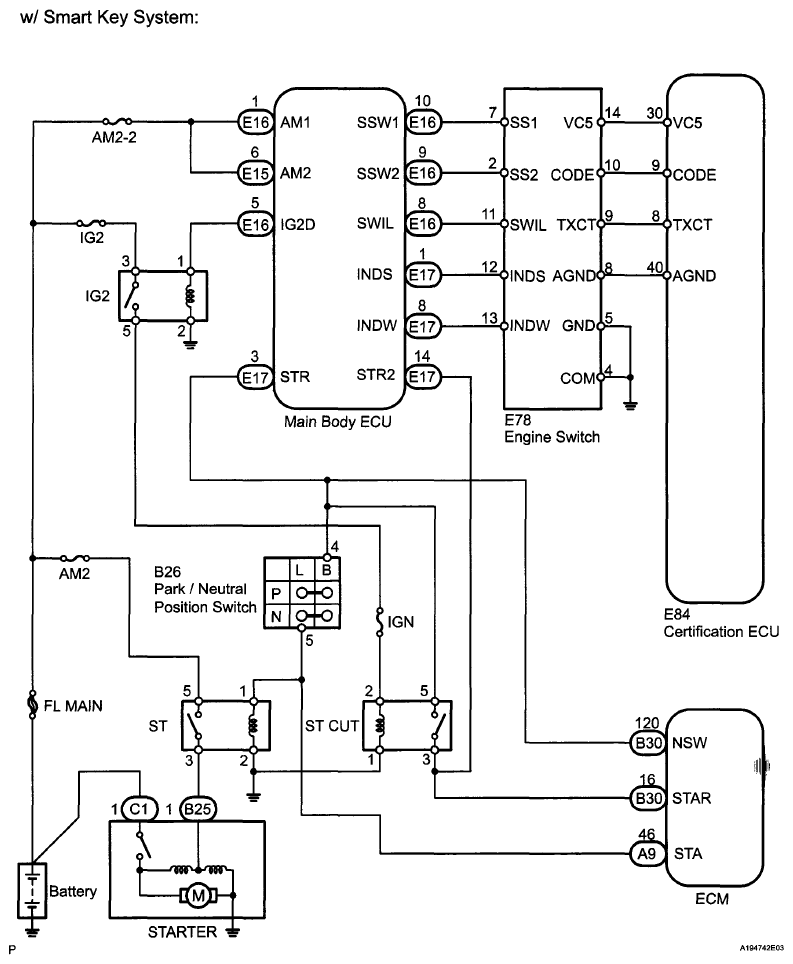

Fig 2: Starting System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
