Section 2 (Starting System (2GR-FE)): Starter: Components

WARNING: This page is about a different variant/trim than selected.

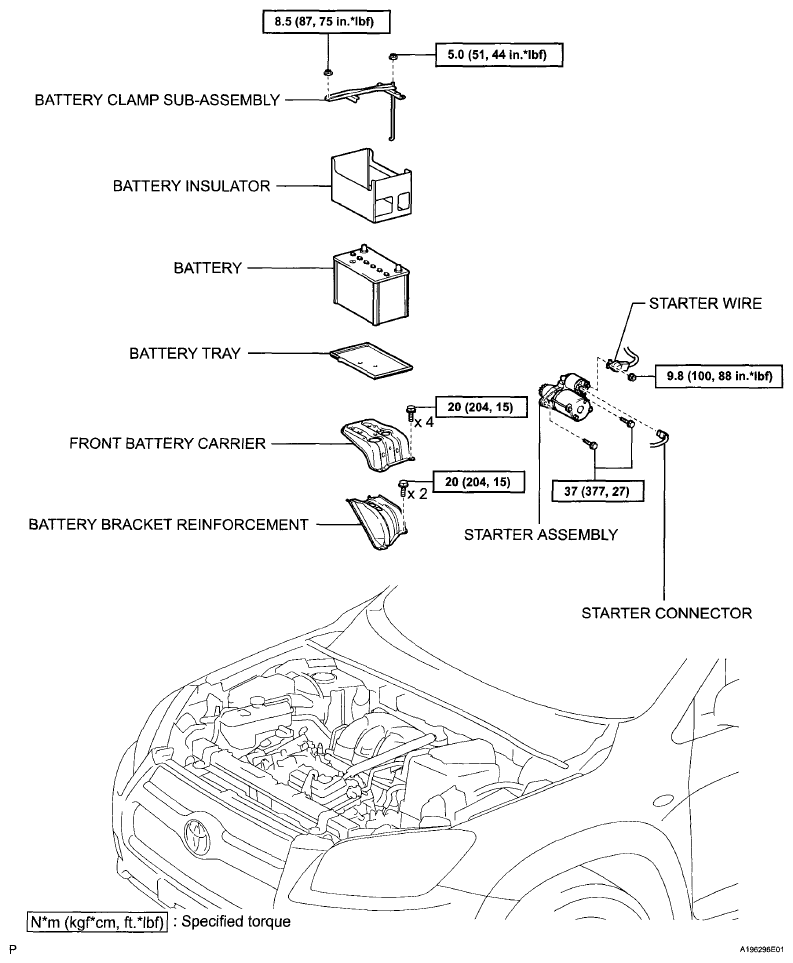

Fig 1: Starter Replacement Components With Torque Specifications (1 Of 2)
G05999352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

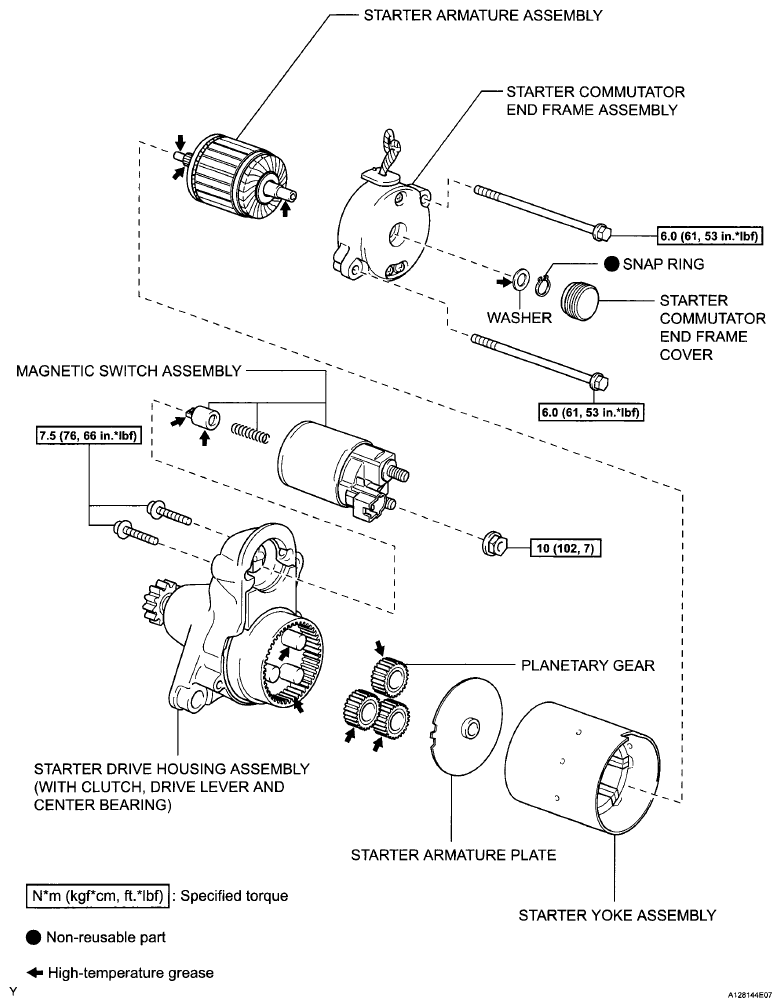

Fig 2: Starter Replacement Components With Torque Specifications (2 Of 2)
G05999353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
