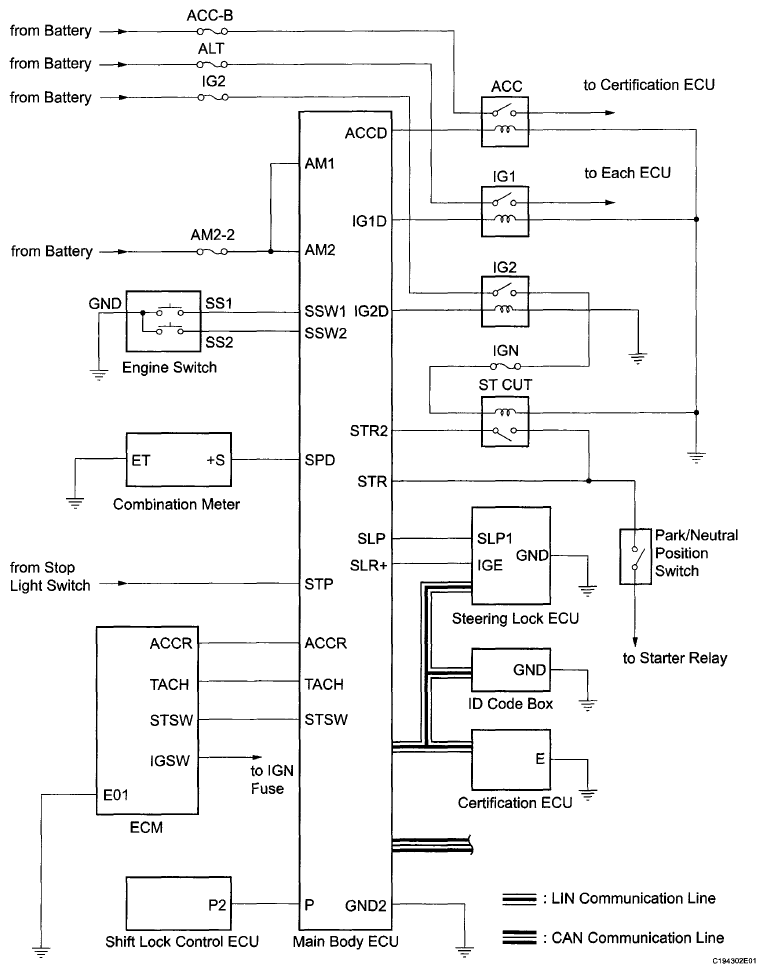

System Diagram
WARNING: This page is about a different variant/trim than selected.
Communication Table
COMMUNICATION CHART
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| ECM | Main body ECU | Engine speed signal | CAN |
| Combination meter | Main body ECU | Vehicle speed signal | CAN |
| Steering lock ECU | Main body ECU | Steering lock/unlock signal | LIN |
| Certification ECU | Main body ECU | LIN master signal | LIN |
| Main body ECU | ID code box | ID required signal | LIN |
| Main body ECU | Certification ECU | Key existence condition signal | LIN |
