Power Source Mode does not Change: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

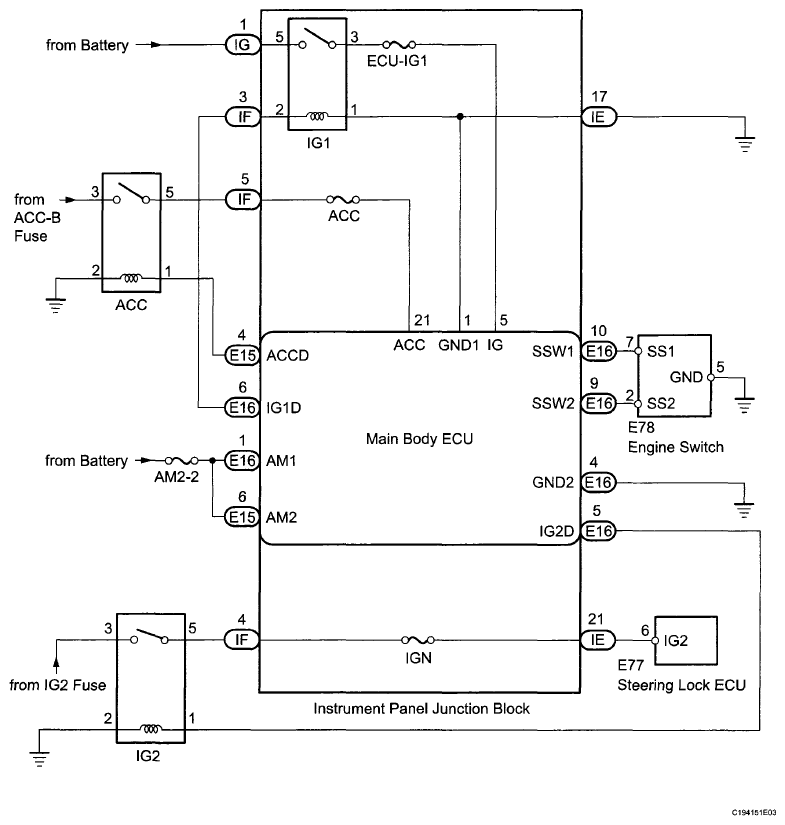

Fig 1: Main Body ECU - Wiring Diagram
G05999195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
