Ignition Switch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL IGNITION SWITCH ASSEMBLY
    1. Install the ignition switch with the 2 screws.

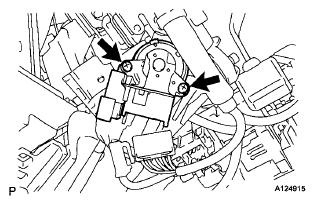

      Fig 1: Locating Ignition Switch And Screws
      G05999406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the ignition key cylinder light connector.
    3. Connect the ignition switch connector.
  2. INSTALL STEERING COLUMN COVER LOWER
    1. Install the steering column cover lower (see INSTALLATION ).
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    Fig 2: Locating Ignition Switch Connector
    G05999405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
