Cruise Control Main Switch: Removal: Removal
WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Be sure to read the precautionary notices concerning the SRS airbag system before servicing it. Refer to PRECAUTION .
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE STEERING PAD ASSEMBLY . Refer to REMOVAL - Step 2

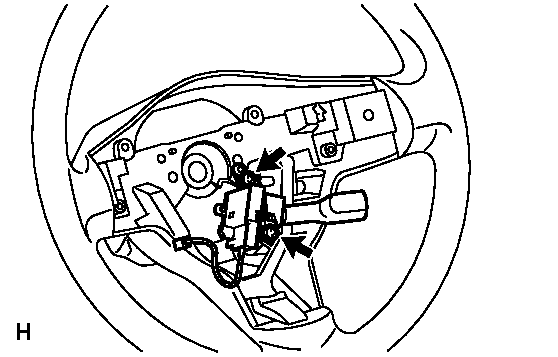

- REMOVE CRUISE CONTROL MAIN SWITCH
- Disconnect the connector.
- Remove the 2 screws and switch.
