VSC Off Switch: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL VSC OFF SWITCH
    1. Engage the 2 claws and install the VSC off switch to the switch base.
      Fig 1: Locating Claws Of VSC OFF Switch
      GTY108989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

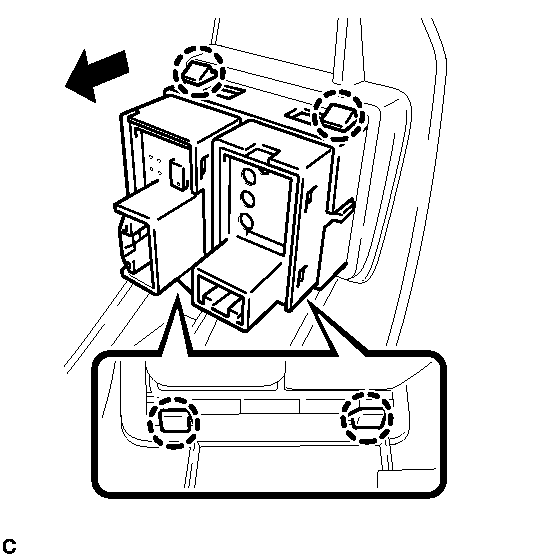

    2. Engage the 4 claws and install the VSC off switch the with switch base to the lower instrument panel finish panel sub-assembly.
      Fig 2: Identifying Claws Of VSC OFF Switch
      GTY149251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 22
  3. INSTALL SIDE INSTRUMENT PANEL LH  . Refer to INSTALLATION - Step 24
  4. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION - Step 79
  5. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 81
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
