VSC Off Switch: Inspection: Inspection
WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

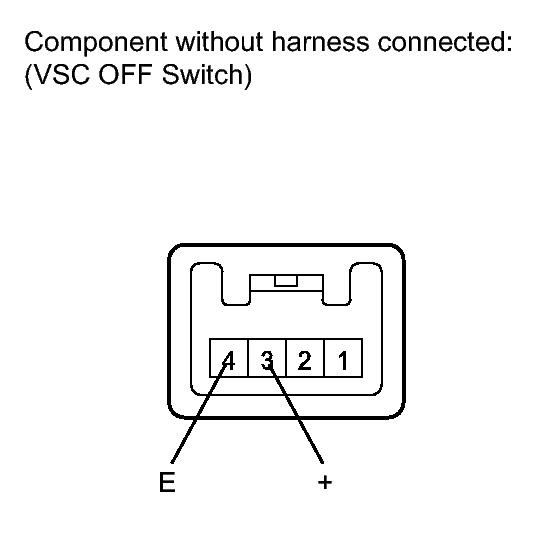

- INSPECT VSC OFF SWITCH
- disconnect the VSC off switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 3 - 4 Pressed Below 1 Ω 3 - 4 Not pressed 10 kΩ or higher If the value is not as specified, replace the VSC off switch.
