Key Reminder (w/o Smart Key System): Notes

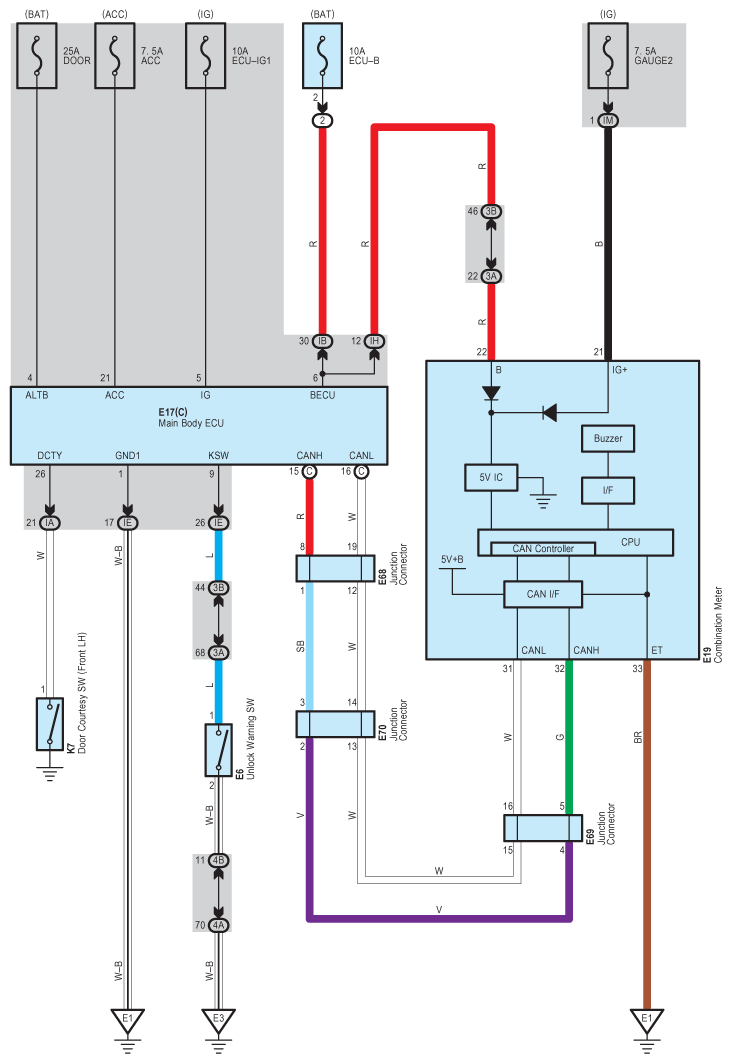

Fig 1: Key Reminder (W/O Smart Key System) - Circuit Diagram

G07611640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
