System Diagram

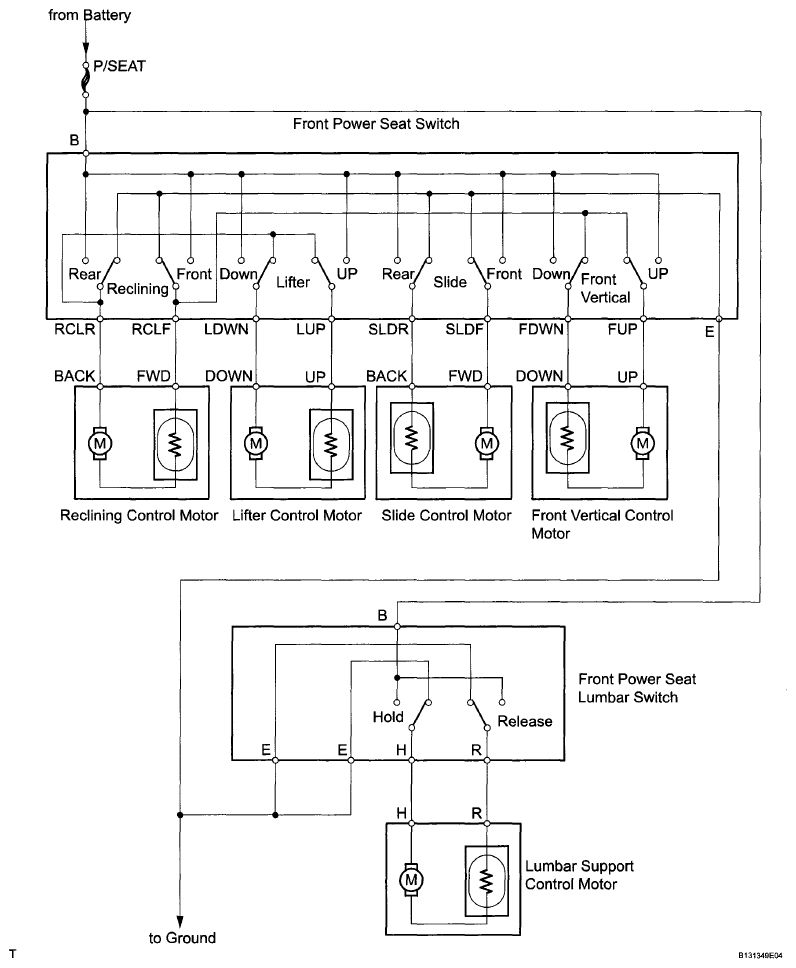

Fig 1: Front Power Seat Control System Diagram

G06000813

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
