System Diagram

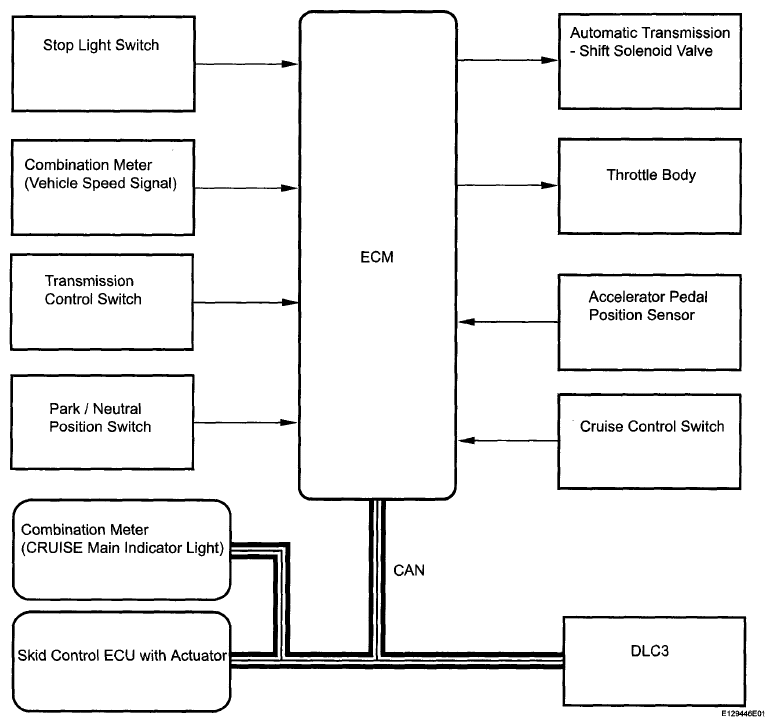

Fig 1: Cruise Control System Diagram
G05999509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender Receiver Signal Line
ECM Skid control ECU with actuator
  • VSC operation signal
  • Coast brake operation signal
 CAN
ECM Combination meter CRUISE main indicator light signal CAN
