Inspection Procedure

  1. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream ON.
    3. By following the Techstream screen display, check whether any DTCs are output.

    OK: No DTC output.

    Result

    RESULT CHART

    Result Proceed to
    OK A
    NG (2AR-FE) B
    NG (2GR-FE) C

    B: Go to DIAGNOSTIC TROUBLE CODE CHART  (See DIAGNOSTIC TROUBLE CODE CHART )

    C: Go to DIAGNOSTIC TROUBLE CODE CHART  (See DIAGNOSTIC TROUBLE CODE CHART )

    A: Go to next step

  2. CHECK MANUAL DOOR UNLOCK OPERATION
    1. Check that all the doors unlock when the door control switch (for manual operation) is turned to UNLOCK.

    OK: All doors can be unlocked with door control switch.

    NG: Go to POWER DOOR LOCK CONTROL SYSTEM  (See OPERATION CHECK )

    OK: Go to next step

  3. CHECK WIRELESS DOOR LOCK CONTROL OPERATION
    1. Check that the wireless door lock and unlock functions operate normally (see OPERATION CHECK ).

    OK: Wireless door lock and unlock functions operate normally.

    NG: Go to WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)  (See OPERATION CHECK )

    OK: Go to next step

  4. READ VALUE USING TECHSTREAM (DOOR COURTESY LIGHT SWITCH)
    1. Check the Data List to confirm the operation of the door courtesy light switch (driver side).

    Main Body

    DATA LIST

    Tester Display Measurement Item / Range Normal Condition Diagnostic Note
    D Door Courtesy SW Driver side door courtesy light switch signal ON / OFF ON: Driver side door is open
    OFF: Driver side door is closed    		 -

    OK: On Techstream screen, item changes between ON and OFF according to above chart.

    NG: Go to LIGHTING SYSTEM  (See DOOR COURTESY SWITCH CIRCUIT )

    OK: Go to next step

  5. READ VALUE USING TECHSTREAM (LOCK POSITION SWITCH)
    1. Check the Data List for proper functioning of the door lock position switch (driver side).

    Main Body

    DATA LIST

    Tester Display Measurement Item / Range Normal Condition Diagnostic Note
    D-Door Lock Pos SW Driver side door lock position switch signal / ON or OFF ON: Door is unlocked
    OFF: Door is locked    		 -

    OK: On Techstream screen, item changes between ON and OFF according to above chart.

    NG: Go to POWER DOOR LOCK CONTROL SYSTEM  (See OPERATION CHECK )

    OK: Go to next step

  6. PERFORM ACTIVE TEST USING TECHSTREAM (DRIVER SIDE SELECT)
    1. Select the Active Test, use the Techstream to generate a control command, and then check that the door electrical key oscillator operates.

    Smart Key

    ACTIVE TEST CHART

    Tester Display Test Part Control Range Diagnostic Note
    D-Seat Select Driver side electrical key oscillator ON or OFF -

    OK: ON (D-Seat Select is ON) appears on screen.

    NG: REPLACE ECU AGGREGATION BOX (CERTIFICATION ECU)  (See CERTIFICATION ECU (W/ SMART KEY SYSTEM) )

    OK: Go to next step

  7. READ VALUE USING TECHSTREAM (TOUCH SENSOR)
    1. With "D-Seat Select" ON, check the Data List to confirm the operation of the touch sensor (driver side).

    Smart Key

    DATA LIST

    Tester Display Measurement Item / Range Normal Condition Diagnostic Note
    D-Door Touch Sensor Driver side door touch sensor / ON or OFF ON: Sensor is touched
    OFF: Sensor is not touched    		 -

    OK: When driver side door touch sensor is set to ON, ON (sensor is touched) appears on screen.

    NG: Go to step  9

    OK: Go to next step

  8. CHECK ECU AGGREGATION BOX (OPERATION)
    1. Temporarily replace the ECU aggregation box (certification ECU) with a new or normally functioning one (see CERTIFICATION ECU (W/ SMART KEY SYSTEM) ).
    2. Check that the entry unlock function operates normally (see OPERATION CHECK ).

    OK: Entry unlock function operates normally.

    NG: REPLACE INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)

    OK: END (CERTIFICATION ECU IS DEFECTIVE)

  9. CHECK DOOR ELECTRICAL KEY OSCILLATOR (for Driver Side)
    1. Measure the voltage of the oscillator.

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Condition Specified Condition
    4 (SEL) - Body ground During Active Test Below 1 V
    6 (SENS) - Body ground Touch sensor is touched during Active Test Below 1 V
    Touch sensor is not touched during Active Test 11 to 14 V

    NG: Go to step 10

    Fig 1: Identifying Door Electrical Key Oscillator Connector Terminals
    G05999974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE ECU AGGREGATION BOX (CERTIFICATION ECU)  (See CERTIFICATION ECU (W/ SMART KEY SYSTEM) )

  10. CHECK WIRE HARNESS (DOOR ELECTRICAL KEY OSCILLATOR - DOOR ELECTRICAL KEY ANTENNA)
    1. Disconnect the g2 oscillator connector.
    2. Disconnect the g1 antenna connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    g2-2 (SGT) - g1-6 (SGT) Below 1 Ω
    g2-3 (ANT1) - g1-5 (ANT1)
    g2-8 (ANT2) - g1-2 (ANT2)
    g2-9 (TRG-) - g1-1 (TRG-)
    g2-2 (SGT) or g1-6 (SGT) - Body ground 10 kΩ or higher
    g2-3 (ANT1) or g1-5 (ANT1) - Body ground
    g2-8 (ANT2) or g1-2 (ANT2) - Body ground
    g2-9 (TRG-) or g1-1 (TRG-) - Body ground

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

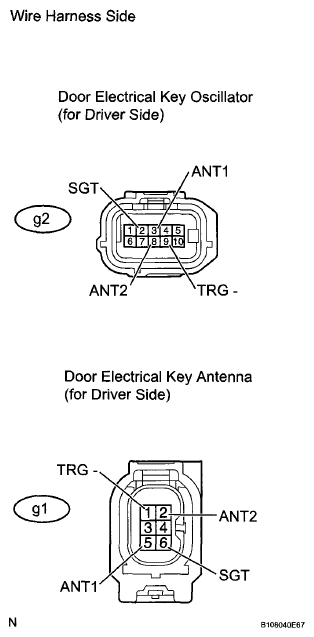

    Fig 2: Identifying Door Electrical Key Oscillator And Door Electrical Key Antenna Connector Terminals
    G05999975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  11. CHECK WIRE HARNESS (CERTIFICATION ECU - DOOR ELECTRICAL KEY OSCILLATOR)
    1. Disconnect the E84 ECU connector.
    2. Disconnect the g2 oscillator connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    E84-5 (SEL1) - g2-4 (SEL) Below 1 Ω
    E84-22 (SEN1) - g2-6 (SENS)
    E84-33 (CLG1) - g2-10 (CLG)
    E84-34 (CG1B) - g2-5 (CLGB)
    E84-5 (SEL1) or g2-4 (SEL) - Body ground 10 kΩ or higher
    E84-22 (SEN1) or g2-6 (SENS) - Body ground
    E84-33 (CLG1) or g2-10 (CLG) - Body ground
    E84-34 (CG1B) or g2-5 (CLGB) - Body ground

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 3: Identifying Certification ECU And Door Electrical Key Oscillator Connector Terminals
    G05999976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE DOOR ELECTRICAL KEY OSCILLATOR (for Driver Side)
