2009
>>
Prius Base
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Electronic Power Steering System
>>
System Diagram
System Diagram

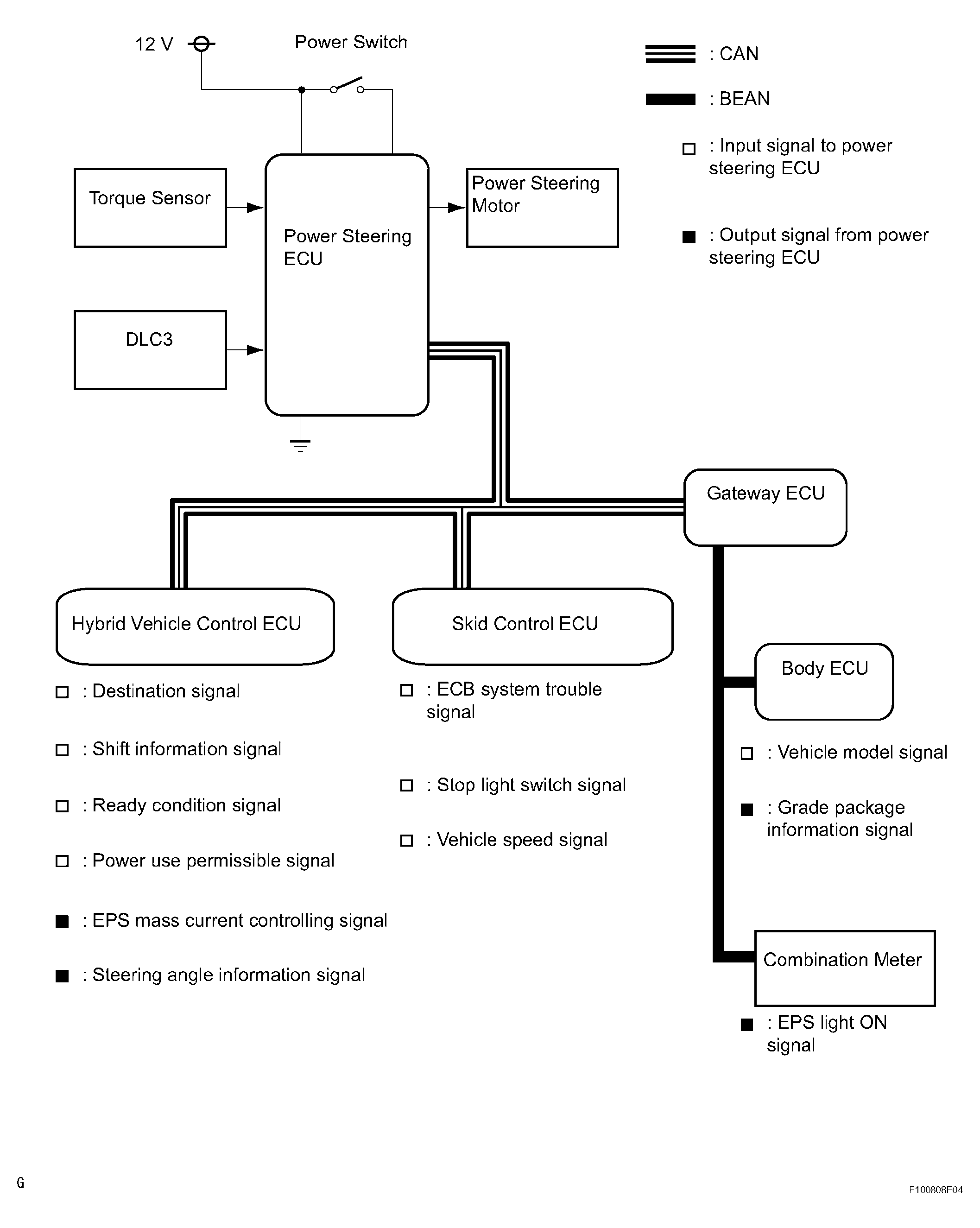

Fig 1: Electronic Power Steering System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
