Water Pump With Motor: Components

Fig 1: Identifying Water Pump With Motor Components (1 Of 2)
G05674901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

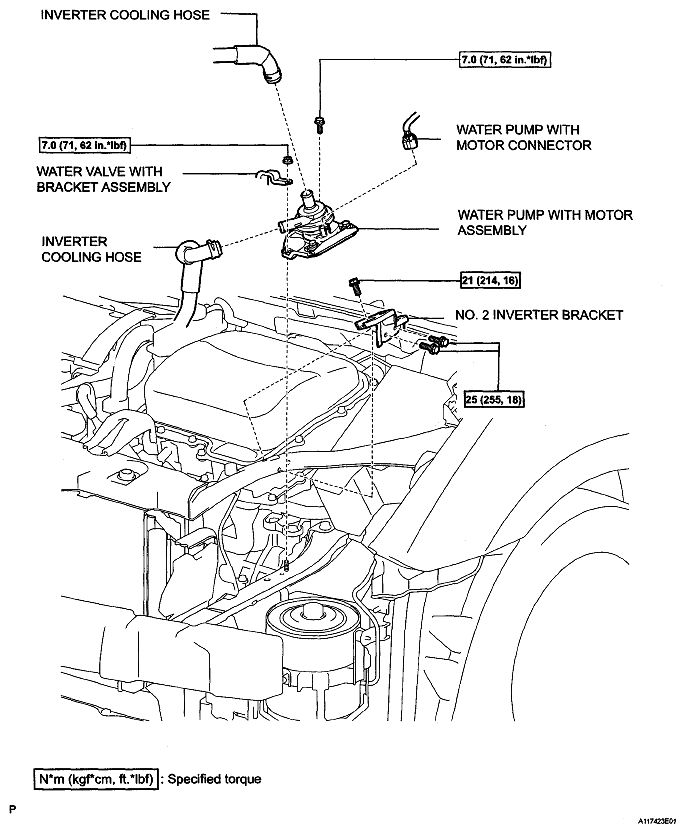

Fig 2: Identifying Water Pump With Motor Components (2 Of 2)
G05674902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
