Oil And Oil Filter: Components

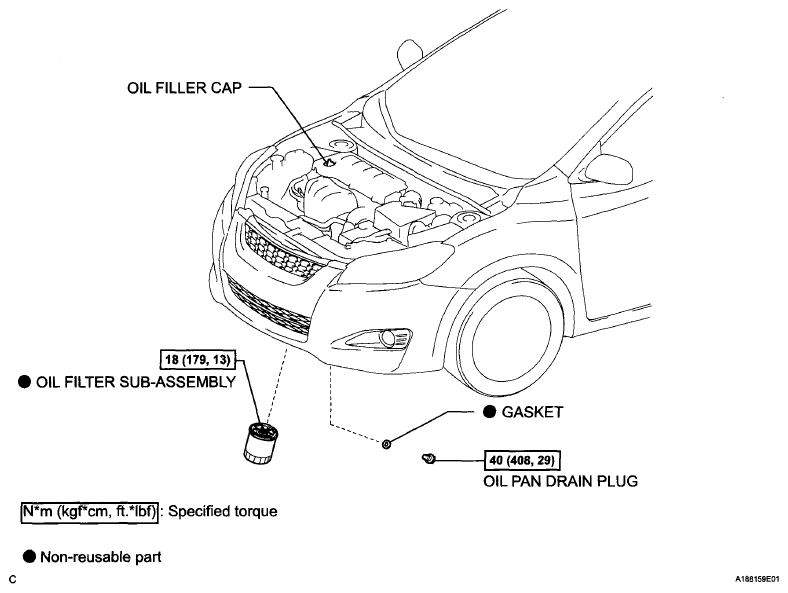

Fig 1: Oil Filter Replacement Components With Torque Specifications

G06042784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
