Park / Neutral Position Switch: Components

WARNING: This page is about a different variant/trim than selected.

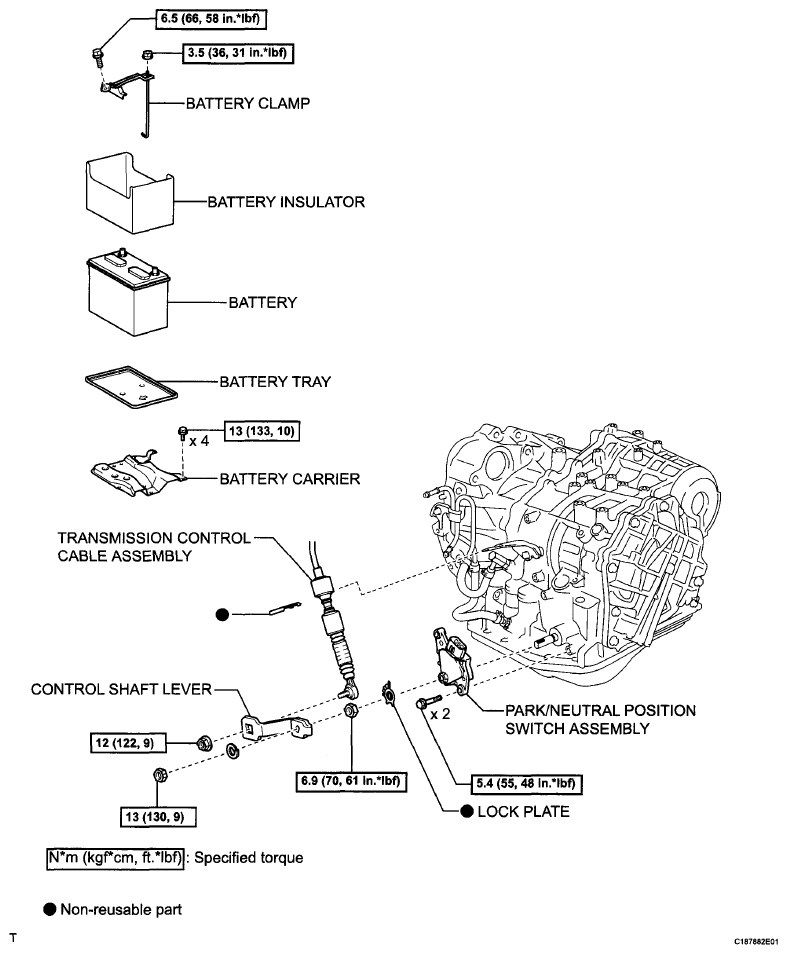

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications
G06043825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
