Back Door Courtesy Switch: Inspection: Inspection

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

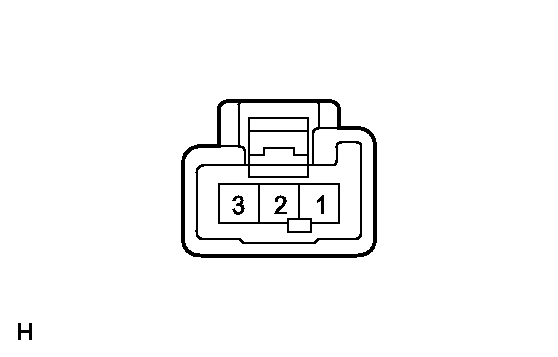

      Fig 1: View Of Back Door Courtesy Switch Connector Terminals Identification
      GTY206785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester connection Condition Specified condition
      2 - 3 Back door is closed 10 kΩ or higher
      2 - 3 Back door is open Below 1 Ω
