Rear Axle Hub Bolt: Components

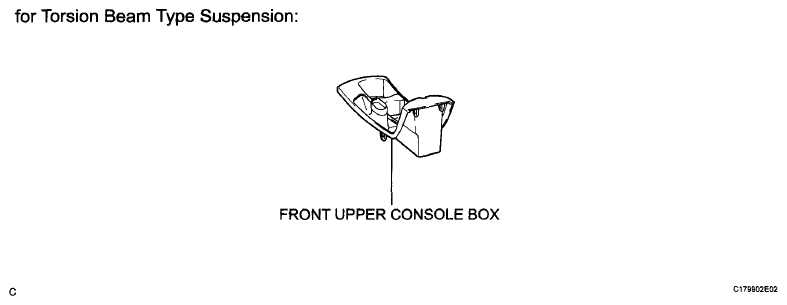

Fig 1: Identifying Front Upper Console Box (Torsion Beam Type Suspension)
G06034290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

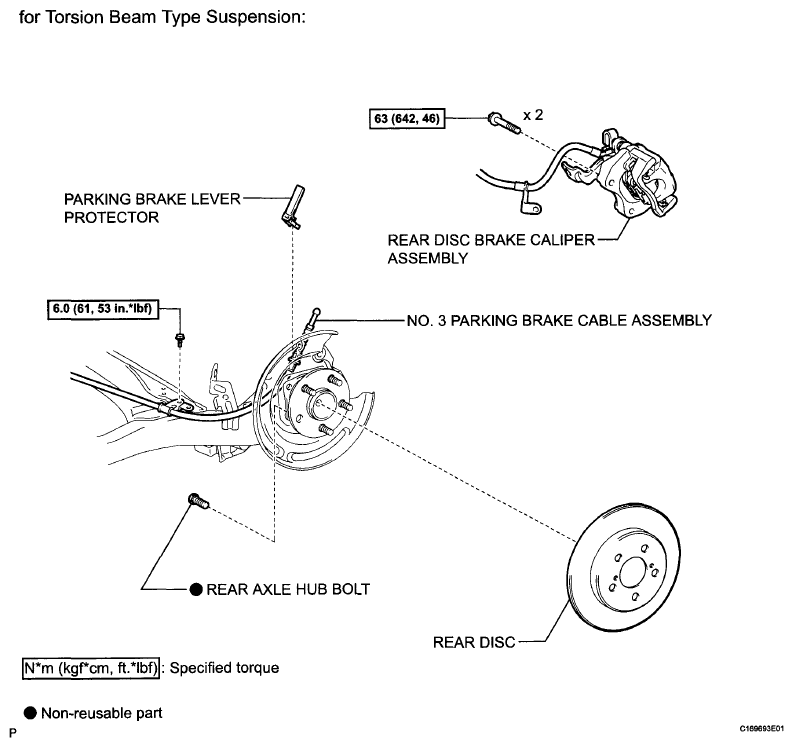

Fig 2: Rear Axle Hub Bolt And Parking Brake Replacement Components With Torque Specifications (Torsion Beam Type Suspension)
G06034291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

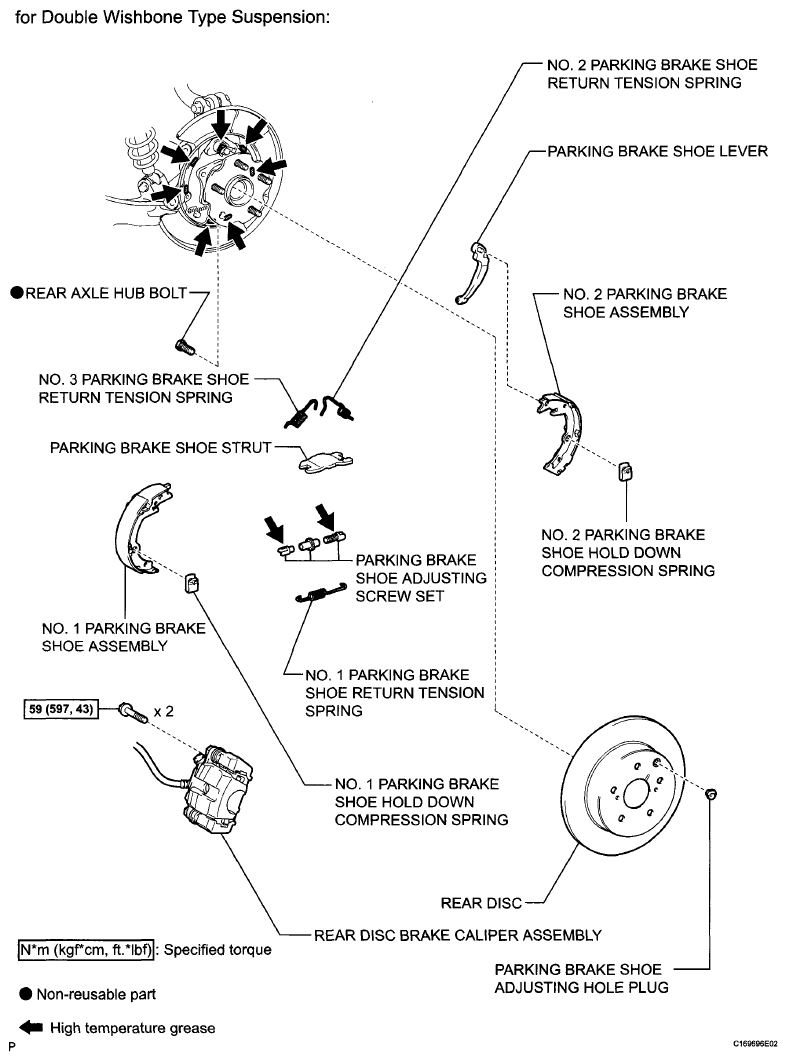

Fig 3: Rear Axle Hub Bolt And Parking Brake Replacement Components With Torque Specifications (Double Wishbone Type Suspension)
G06034292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
