Rear Window Defogger System does not Operate: Wiring Diagram

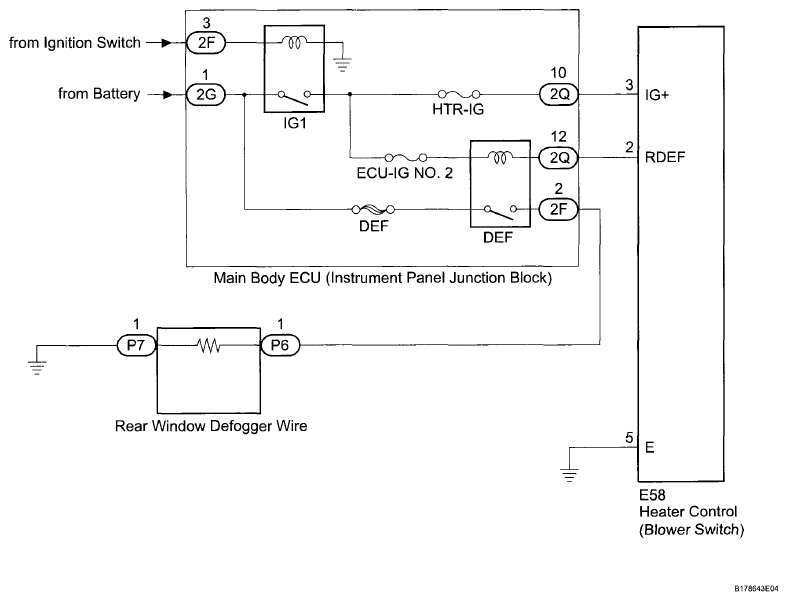

Fig 1: Rear Window Defogger System - Wiring Diagram

G06038187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
