Tire Pressure Warning Receiver: Installation

1. INSTALL TIRE PRESSURE WARNING ANTENNA AND RECEIVER
   1. Connect the connector.
      Fig 1: Locating Tire Pressure Warning Antenna And Receiver Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the tire pressure warning antenna and receiver with the bolt.

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

   HINT:

   Engage the 2 tabs into the holes as shown in the illustration to install the tire pressure warning antenna and receiver.

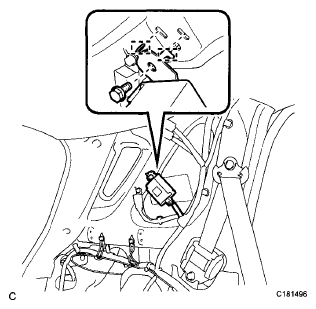

   Fig 2: Identifying Tire Pressure Warning Antenna And Receiver With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL ROOF SIDE INNER GARNISH LH  (See INSTALLATION )
3. INSTALL QUARTER PILLAR GARNISH LH  (See INSTALLATION )
4. INSTALL SIDE DECK TRIM PANEL ASSEMBLY LH  (See INSTALLATION )
5. INSTALL REAR COMBINATION LIGHT SERVICE COVER LH  (See INSTALLATION )
6. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)  (See INSTALLATION )
7. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)  (See INSTALLATION )
8. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH  (See INSTALLATION )
9. INSTALL REAR SEAT SIDE GARNISH LH  (See INSTALLATION )
10. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY (for LH Side)  (See INSTALLATION )
11. INSTALL REAR DECK TRIM COVER  (See INSTALLATION )
12. INSTALL LUGGAGE COMPARTMENT TRAY  (See INSTALLATION )
13. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR  (See INSTALLATION )
14. INSTALL DECK FLOOR BOX RH  (See INSTALLATION )
15. INSTALL DECK FLOOR BOX LH  (See INSTALLATION )
16. INSTALL JACK ASSEMBLY  (See INSTALLATION )
17. INSTALL JACK CARRIER ASSEMBLY
18. INSTALL NO. 2 DECK BOARD  (See INSTALLATION )
19. INSTALL DECK BOARD ASSEMBLY  (See INSTALLATION )
20. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
21. INSTALL REAR SEATBACK ASSEMBLY LH  (See INSTALLATION )
22. INSTALL REAR SEATBACK INNER HINGE COVER (for LH Side)  (See INSTALLATION )
23. INSTALL REAR SEATBACK OUTER HINGE COVER (for LH Side)  (See INSTALLATION )
24. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
25. INSTALL REAR SEAT CUSHION ASSEMBLY  (See INSTALLATION )
26. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
27. INSTALL REAR DOOR SCUFF PLATE LH  (See INSTALLATION )
28. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
29. INSPECT TIRE PRESSURE WARNING SYSTEM

HINT:

See TEST MODE PROCEDURE .
