Front Console Box: Components

Fig 1: Identifying Front Console Box Components (1 Of 3)
G06036547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

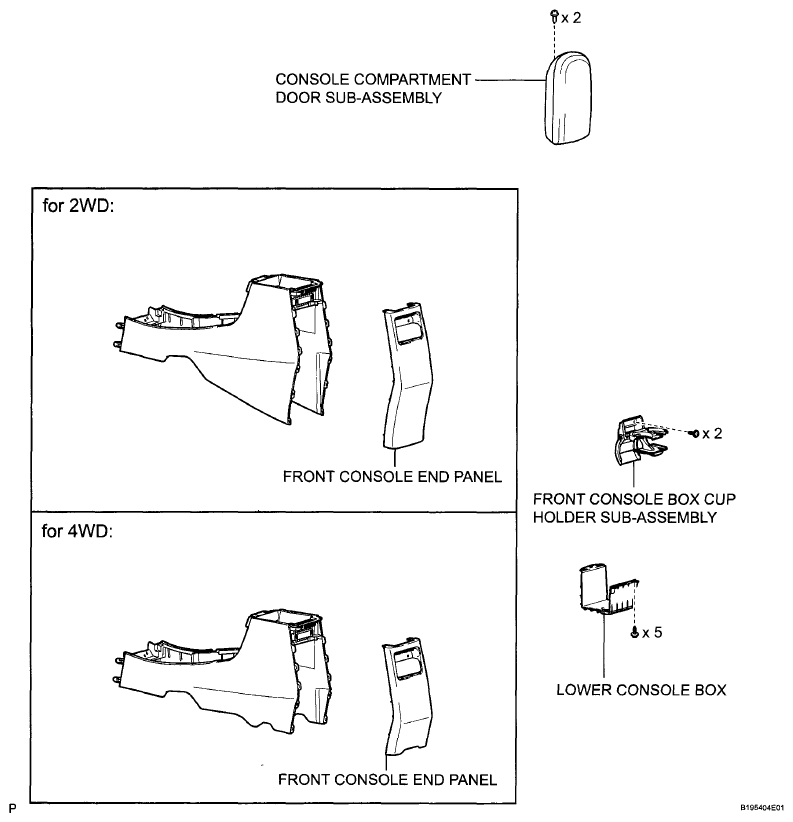

Fig 2: Identifying Front Console Box Components (2 Of 3)
G06037906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

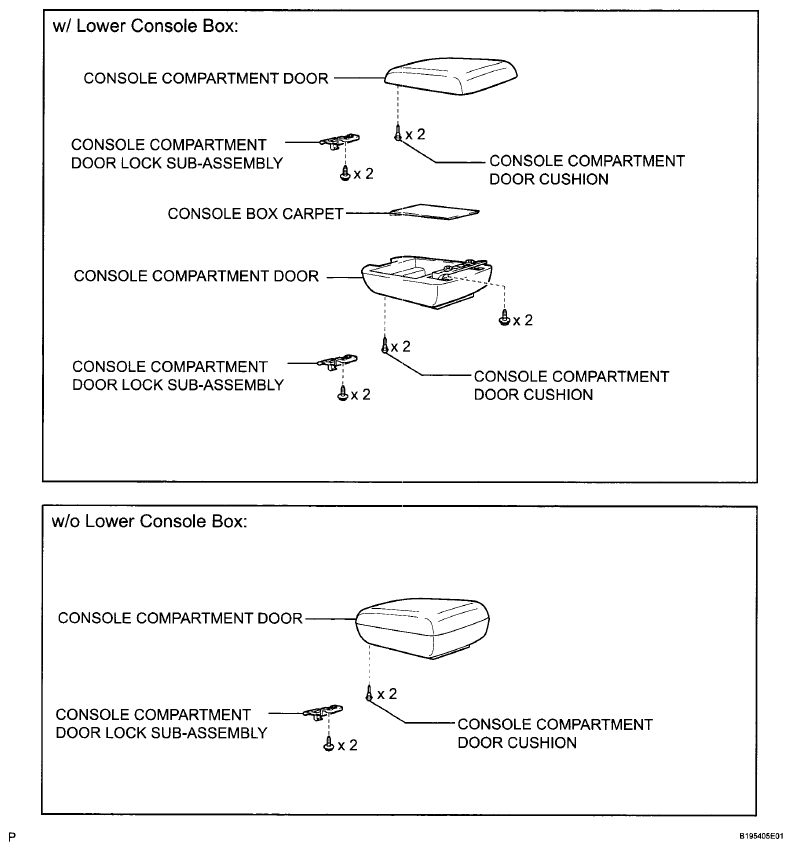

Fig 3: Identifying Front Console Box Components (3 Of 3)
G06037907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
