Front Blower Motor: Installation

  1. INSTALL BLOWER MOTOR SUB-ASSEMBLY (w/o PTC Heater)
    1. Install the blower motor sub-assembly with the 3 screws.
    2. Connect the connector.
    3. Engage the clamp.

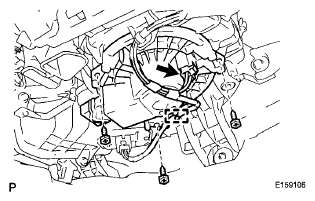

    Fig 1: Identifying Blower Motor Sub-Assembly Screws And Connector
    G06037625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BLOWER MOTOR SUB-ASSEMBLY (w/ PTC Heater)
    1. Install the blower motor sub-assembly with the 3 screws.
    2. Connect the connector.
    3. Engage the clamp.
    4. Install the quick heater connector screw.

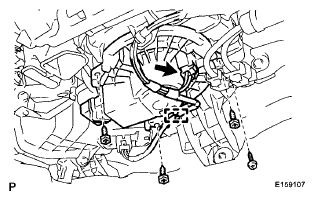

    Fig 2: Identifying Blower Motor Sub-Assembly Screws And Connector
    G06037626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)  (See INSTALLATION )
