COMPRESSOR (for 2ZR-FE): Components

Fig 1: Identifying Compressor (For 2ZR-FE) Components (1 Of 2)
G06037679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

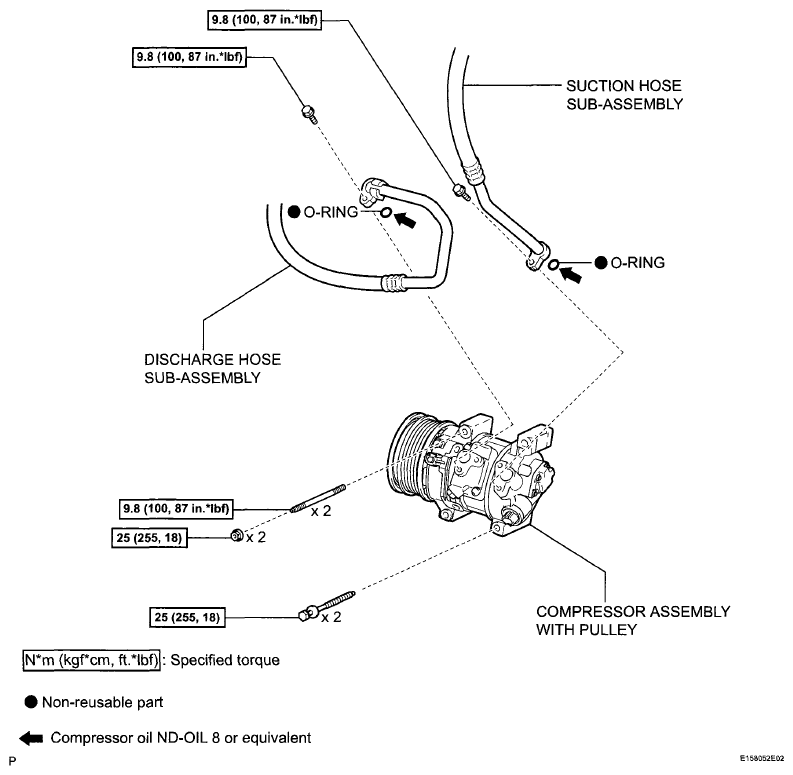

Fig 2: Compressor (For 2ZR-FE) Replacement Components With Torque Specifications (2 Of 2)
G06037680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
