Blower Resistor: Installation

  1. INSTALL BLOWER RESISTOR
    1. Install the blower resistor with the 2 screws.
    2. Connect the connector.
  2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)  (See INSTALLATION )

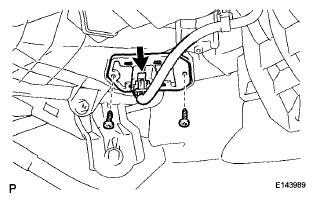

    Fig 1: Identifying Blower Resistor Screws And Connector
    G06015488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
