Parts Location

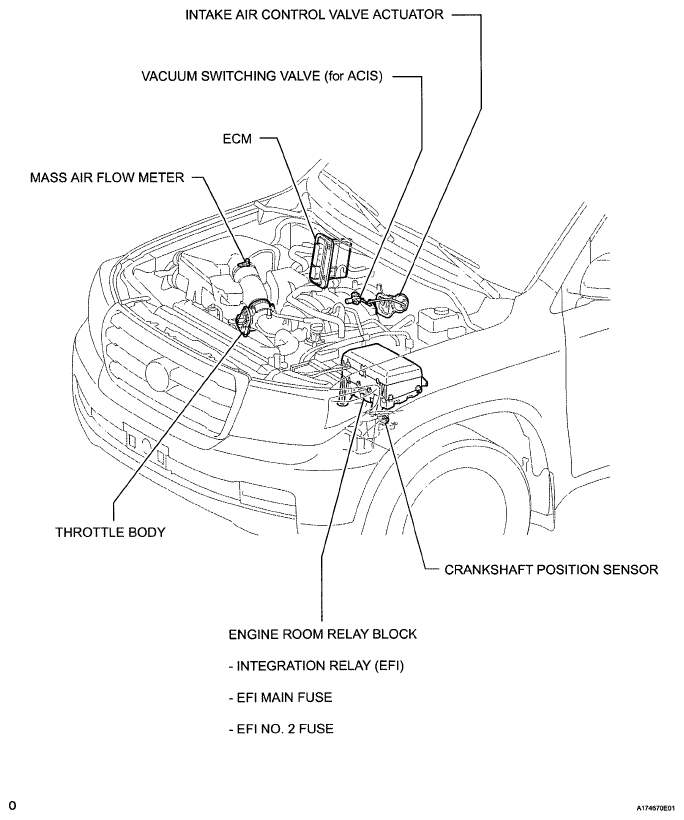

Fig 1: Identifying Location Of Intake System Components

G05637994

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
