DTC Check/Clear

HINT:

Only premium sound models have DTCs.
If the system cannot enter the diagnosis mode, inspect all AVC-LAN communication signals and repair or replace problem parts (See AVC-LAN CIRCUIT ).

STARTING DIAGNOSTIC MODE

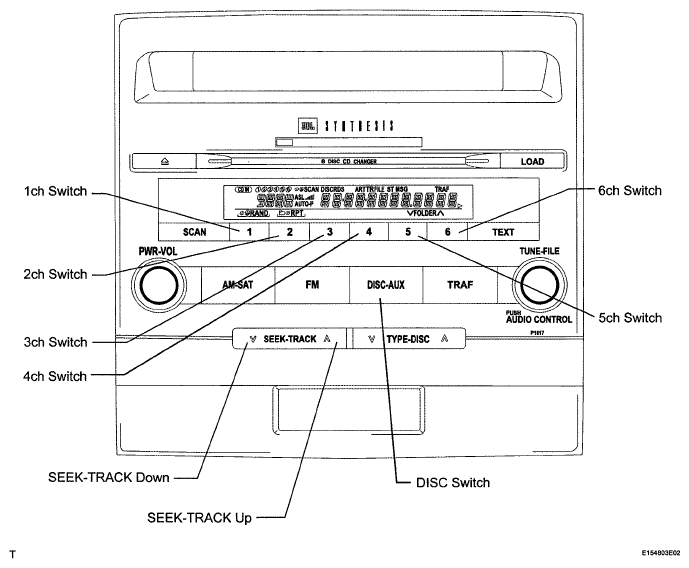

Fig 1: Identifying Stereo Switch & Buttons
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn off the audio system and turn the engine switch on (ACC). While pressing the preset switches "1" and "6" at the same time, press the "DISC" switch 3 times.
ALL ELEMENT ILLUMINATE MODE AND SWITCH INSPECTION MODE

Fig 2: Identifying Disc Switch Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- When the system enters the diagnostic mode, a "beep" sound is emitted 3 times and all the elements turn on during the switch check mode.
- It takes about 40 seconds to complete the check.
- All elements on the LCD will illuminate. Check that the illuminating elements are not malfunctioning.
- When pressing a switch, confirm that a beep sound is emitted. At that time, press the SEEK-TRACK up switch to a mode where the stereo jack adapter connection check can be performed.
AUX ADAPTER
1. Press the "SEEK-TRACK up" switch.
2. Check if the aux adapter has been recognized.
  HINT:

  Even if the vehicle does not have an aux adapter, this recognition function is available.

  NOTE: This recognition function is for checking the recognition information of the aux adapter. This function is not for checking the connection information of external devices.

  Fig 3: Identifying Aux Adapter Connected & Disconnected Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SERVICE CHECK MODE
1. Press the "SEEK-TRACK up" switch.
  HINT:

  For details about the service check mode, refer to the "Check DTC" AND "DTC Clear/Recheck" procedures.
FINISHING DIAGNOSTIC MODE
1. Press the "DISC" switch for 2 seconds or more, or turn the engine switch off.

CHECK DTC

HINT:

Illumination may differ from the actual vehicle depending on the device setting and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Reference:

In the system check mode, the system check and the diagnostic memory check are performed, and the check results are displayed in ascending order of the component codes (physical address).

TERMS AND MEANING REFERENCE CHART

Terms	Meaning
Physical address (component code)	Three-digit code (in hexadecimal) given to each component of AVC-LAN. Individual symbol is provided corresponding to each function.
Logical address	Two-digit code (in hexadecimal) given to each function and component unit in each component of AVC-LAN.

Service check result display

RESULT DISPLAY CHART

Display	Original Language	Meaning	Action to be Taken
good	Good (normal)	No DTCs are stored in both "System Check Mode" and "Diagnostic Memory Mode".	-
nCon	No connection	System recognized component when it was registered, but component gives no response to "Diagnostic Mode ON Request".	Check power source circuit and communication circuit of component indicated by component code (physical address).
ECHn	Exchange	One or more DTCs for "Exchange" are stored in either "System Check Mode" or "Diagnostic Memory Mode".	Go to detailed information mode to check trouble area on DTC list.
CHEC	Check	When no DTCs are stored for "Exchange", one or more DTCs for "Check" are stored in either "System Check Mode" or "Diagnostic Memory Mode".	Go to detailed information mode to check trouble area on DTC list.
OLd	Old version	Old DTC application is identified and DTC is stored in either "System Check Mode" or "Diagnostic Memory Mode".	-
nrES	No response	Device gives no response to "System Check Mode ON Request", "System Check Result Request" or "Diagnostic Memory Request".	Check power source circuit and communication circuit of component indicated by component code (physical address).

Device name and physical address.

DEVICE NAME AND PHYSICAL ADDRESS REFERENCE CHART

Physical Address No.	Name
190	Radio receiver
440	Stereo component amplifier

Service check mode.
1. Press the "SEEK-TRACK" switch to see the check result of each component.
2. The component code (physical address) is displayed first, and then the check result follows.
  HINT:
  - If all check results are "good", the system judges that no DTC is stored.
  - If the preset switch "1" is pressed in the service check mode, service check is performed again.
  - This illumination is only an example and may differ in cases such as for each option part and output DTCs.

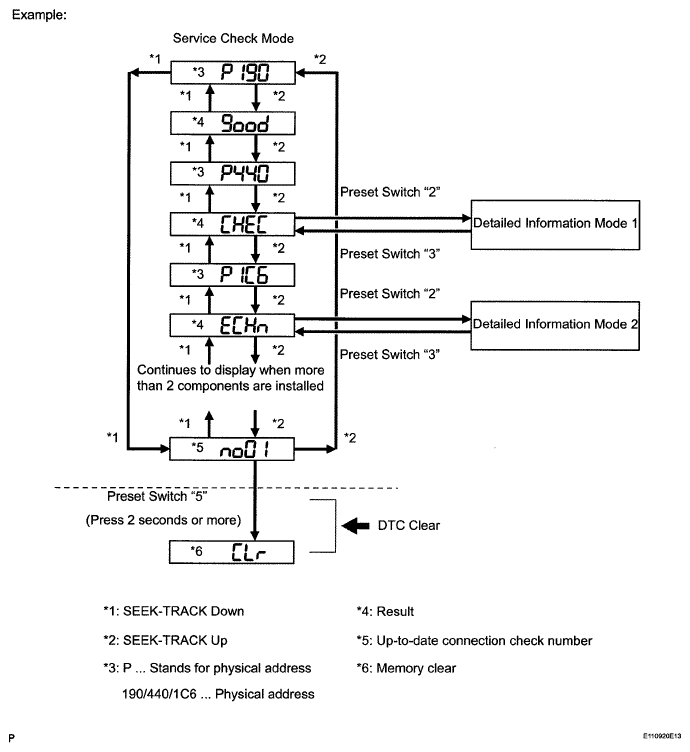

    Fig 4: Identifying Service Check Mode Screen Display
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Detailed Information Mode 1
HINT:
- "Detailed Information Mode 1" is displayed when there is no response to "System Check Result Request" and DTC is stored only in "Diagnostic Memory Request".
- The component device code (physical address) is displayed first, and then the check result follows.
- This illumination is only an example and may differ in cases such as for each option part and output DTCs.
1. Press preset switch "2" to go to e"Detailed Information Mode 1".
2. Press the "SEEK-TRACK" switch to display the physical address and DTC of the component.
3. Press preset switch "3" to go to d"Service Check Mode".
4. Distinguish between the displays of the responses to "System Check Result Request" and "Diagnostic Memory Request". In order to distinguish the information detected in "System Check Mode" and "Diagnostic Memory Mode" in "ECHn", "CHEC", and "old" in "Detailed Information Mode 1", refer to the following:
  - "SYS" is displayed before the detailed codes detected as a result of "System Check Result Request".
  - "COdE" is displayed before the detailed codes detected as a result of "Diagnostic Memory Request".
  HINT:
  - The response to "System Check Result Request" is the current information given from each ECU as a result of the system check.
  - The response to "Diagnostic Memory Request" contains the information received from each ECU or stored in each ECU in the past.
  - The response to "Diagnostic Memory Request" is that DTCs as a result of the diagnostic memory check or the DTCs received from each ECU are output.
  - "System Check Result Request (SYS)" is displayed first, and then the logical address and DTC appear in order.
  - "Diagnostic Memory Request (COdE)" is displayed first, and then the logical address, DTC, sub-code, connection check number, and the number of occurrences appear in order.

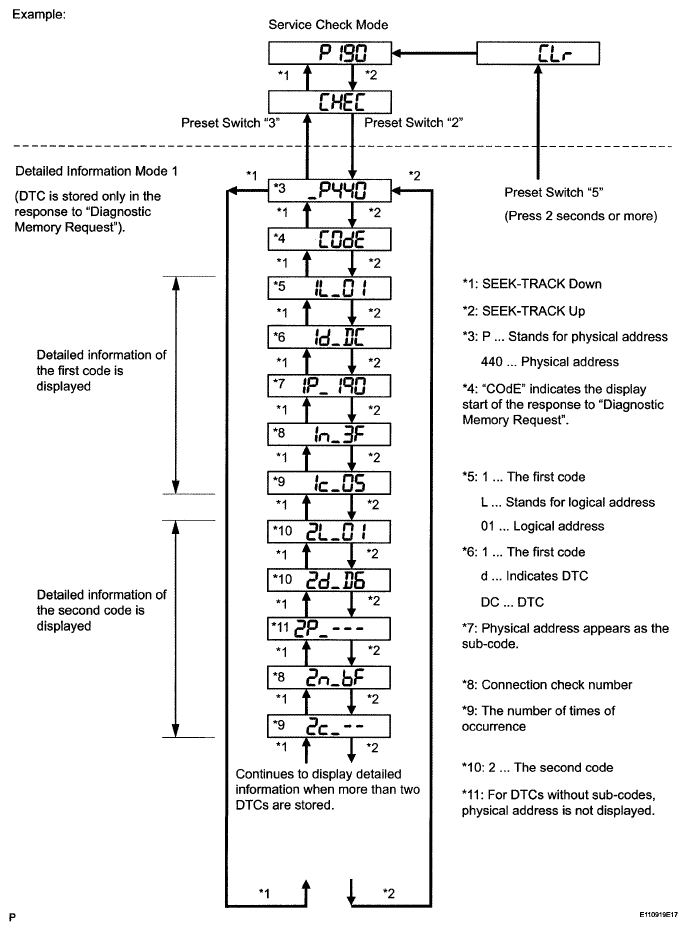

    Fig 5: Identifying Service Check Mode Screen Display - Mode 1
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Detailed Information Mode 2
HINT:
- "Detailed Information Mode 2" is displayed when DTCs are stored in the responses to both "System Check Result Request" and "Diagnostic Memory Request".
- The component device code (physical address) is displayed first, and then the check result follows.
- This illumination is only an example and may differ in cases such as for each option part and output DTCs.
1. Press preset switch "2" to go to f"Detailed Information Mode 2".
2. Press the "SEEK-TRACK" switch to display the physical address and DTC of the component.
3. Press preset switch "3" to go to d"Service Check Mode".
4. Distinguish between the displays of the responses to "System Check Result Request" and "Diagnostic Memory Request". In order to distinguish the information detected in "System Check Mode" and "Diagnostic Memory Mode" in "ECHn", "CHEC", and "old" in "Detailed Information Mode 2", refer to the following:
  - "SYS" is displayed before the detailed codes detected as a result of "System Check Result Request".
  - "COdE" is displayed before the detailed codes detected as a result of "Diagnostic Memory Request".
  HINT:
  - The response to "System Check Result Request" is the current information given from each ECU as a result of the system check.
  - The response to "Diagnostic Memory Request" contains the information received from each ECU or stored in each ECU in the past.
  - The response to "Diagnostic Memory Request" is that DTCs as a result of the diagnostic memory check or the DTCs received from each ECU are output.
  - "System Check Result Request (SYS)" is displayed first, and then the logical address and DTC appear in order.
  - "Diagnostic Memory Request (COdE)" is displayed first, and then the logical address, DTC, sub-code, connection check number, and the number of occurrences appear in order.

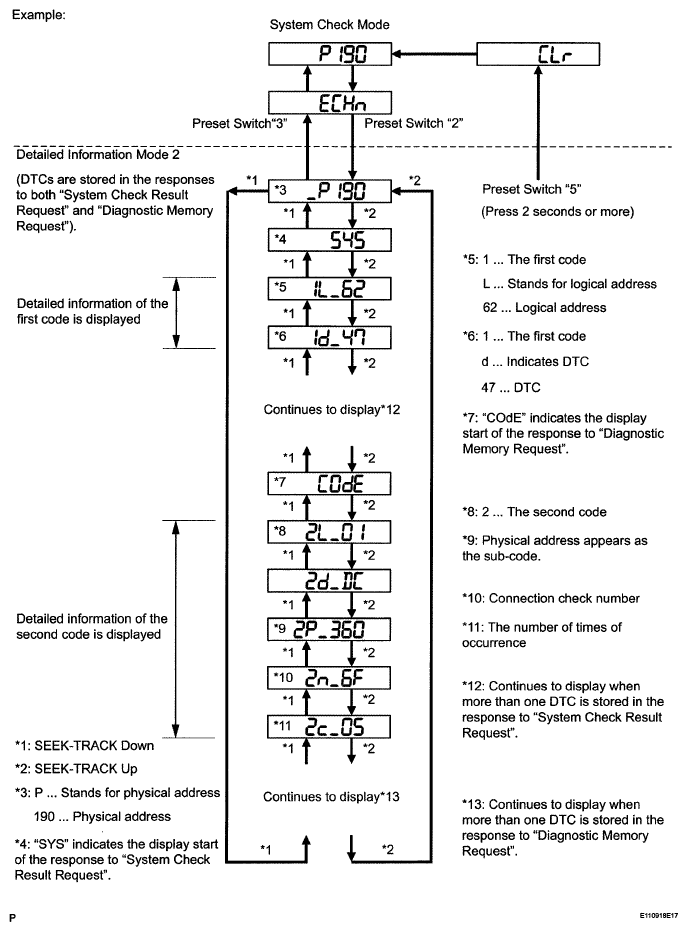

    Fig 6: Identifying Service Check Mode Screen Display - Mode 2
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DTC CLEAR/RECHECK

Fig 7: Identifying Stereo Switch & Buttons
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Clearing all DTC Memory (when clearing all the memory of the DTCs previously detected).
  1. When preset switch "5" is pressed for 2 seconds or more during "Service Check Mode", the DTCs for all components are cleared. ("Clr" is displayed at this time).
    HINT:
    - A beep sound is emitted once when the DTC memory is completely cleared.
    - When the DTC memory for all the components is cleared, only the component codes (physical address) are displayed.
    - After the DTC memory is cleared, the "Service Check Mode" is restored.
2. Clearing Individual DTC Memory (when clearing the memory of the DTC previously detected individually).
  1. When preset switch "5" is pressed for 2 seconds or more during "Detailed Information Mode 1" or "Detailed Information Mode 2", the DTCs for the target component are cleared.
    HINT:
    - A beep sound is emitted once when the DTC memory is completely cleared.
    - When the DTC memory is cleared, only the component code (physical address) is displayed for target component.
    - After the DTC memory is cleared, the "Service Check Mode" is restored.
    - To check DTCs, press preset switch "1" and perform the system check again.
3. Press preset switch "1" to perform the service check again, and check that no DTCs are output for all the component codes (physical address).
