Driver Side Power Window Auto Up/Down Function does not Operate with Power Window Master Switch: Wiring Diagram

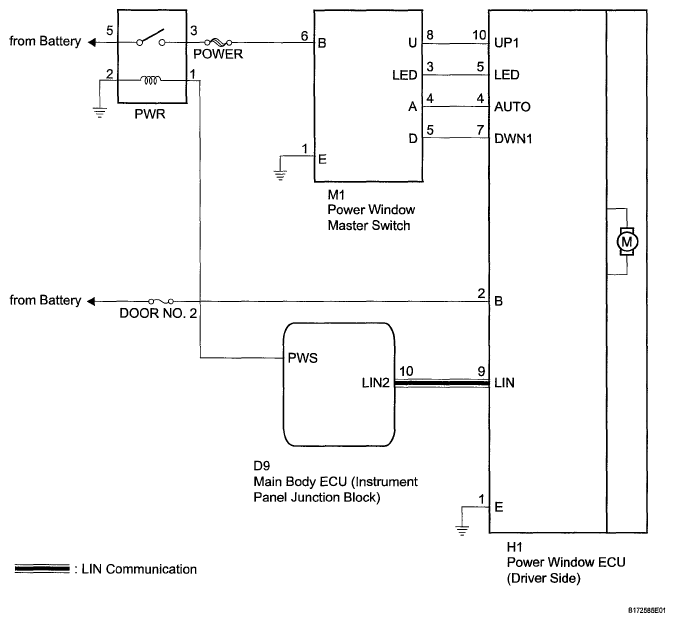

Fig 1: Driver Side Power Window Auto Up/Down Function Does Not Operate - Wiring Diagram
G05421147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
