System Diagram

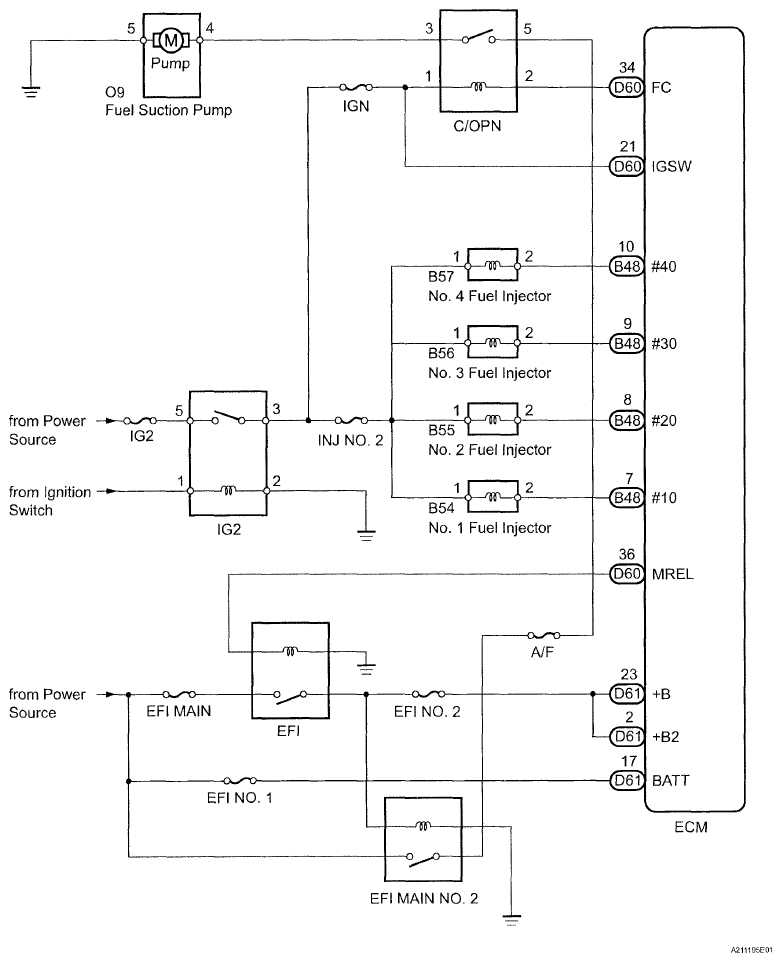

FUEL SYSTEM WIRING DIAGRAM

Fig 1: Fuel System Wiring Diagram

G06112993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
