Ignition Coil And Spark Plug: Installation

  1. INSTALL SPARK PLUG
    1. Using a spark plug wrench, install the 4 spark plugs.

      Torque: 25 N*m (254 kgf*cm, 18 ft.*lbf)

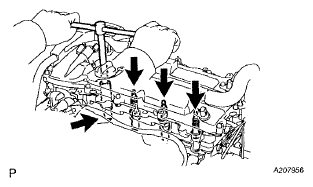

    Fig 1: Installing Spark Plug
    G06115663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL IGNITION COIL ASSEMBLY
    1. Install the 4 ignition coil assemblies with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Connect the 4 ignition coil assembly connectors.
  3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  (See INSTALLATION )
Fig 2: Locating Ignition Coil Assemblies Bolts
G06023462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
