Remote Up/Down Function does not Operate: Wiring Diagram

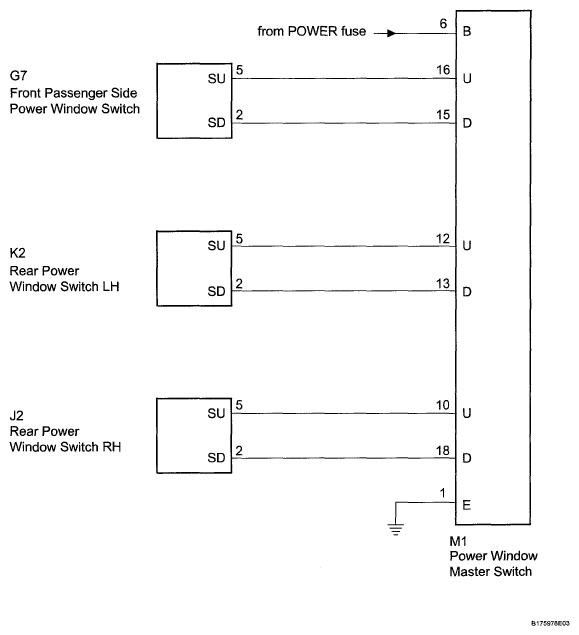

Fig 1: Remote Up/Down Function Does Not Operate - Wiring Diagram

G05421115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
