TRAC OFF Indicator Light Remains ON: Wiring Diagram

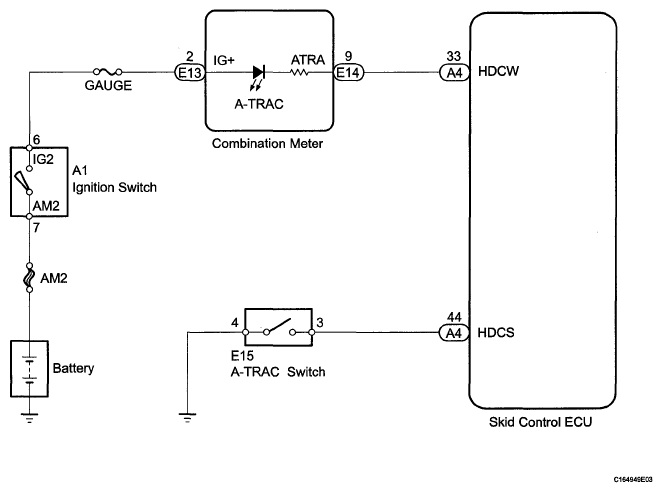

Fig 1: A-TRAC Indicator Light - Wiring Diagram
G05579905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
