DTC C1340/47 Center Differential Lock Circuit: Wiring Diagram

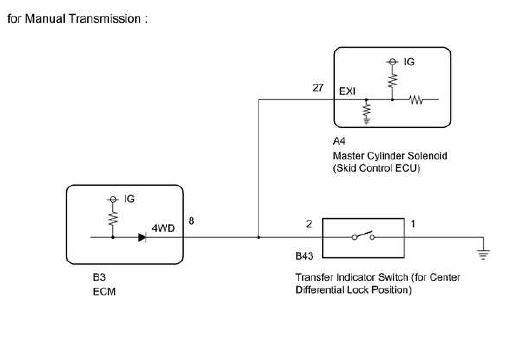

Fig 1: Transfer Shift Actuator - (M/T)
G00590209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transfer Shift Actuator - (A/T)
G00590210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
