DTC C1248/48 Open Circuit in Rear Differential Lock: Wiring Diagram

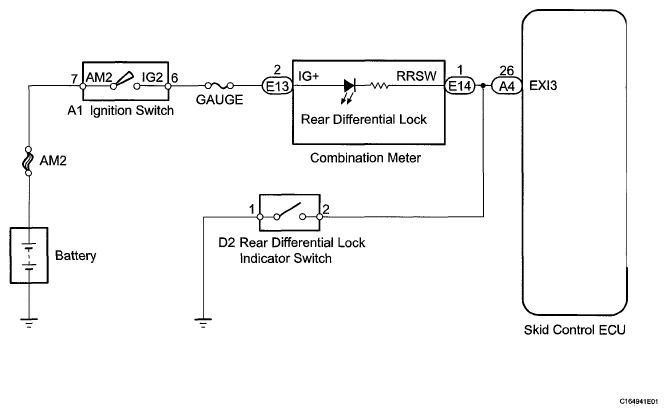

Fig 1: Rear Differential Lock Indicator Switch - Wiring Diagram

G05579833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
