Inspection Procedure

HINT:

When U0073/94, U0100/65, U0123/62, U0124/95 or U0126/63 are output accompanied by C1210/36 or C1336/39, inspect and repair the trouble areas indicated by U0073/94, U0100/65,U0123/62, U0124/95 or U0126/63 first.

1. PERFORM YAW RATE AND DECELERATION SENSOR ZERO POINT CALIBRATION
   1. Perform the zero point calibration of the yaw rate sensor and deceleration sensor (See CALIBRATION  ).
2. RECONFIRM DTC
   1. Clear the DTCs (See DTC CHECK/CLEAR  ).
   2. Check if the same DTCs are recorded (See DTC CHECK/CLEAR  ).

      Result

      RESULT CHART



      Result	Proceed to
      DTC output	A
      DTC not output	B

   B: END

   A: Go to next step

3. CHECK YAW RATE AND DECELERATION SENSOR INSTALLATION
   1. Check that the yaw rate and deceleration sensor has been installed properly (See INSTALLATION  ).

      OK:

      The sensor is tightened to the specified torque. The sensor is not tilted.

   NG: INSTALL YAW RATE SENSOR CORRECTLY  (See INSTALLATION  )

   OK: Go to next step

4. CHECK HARNESS AND CONNECTOR (ECU - PARK/NEUTRAL POSITION SWITCH OR PARKING BRAKE SWITCH)
   1. NT
      1. Disconnect the skid control ECU connector.

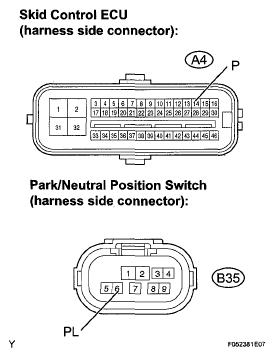

      Fig 1: Identifying Skid Control ECU Connector And Park/Neutral Position Switch Connector
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the Park/Neutral position switch connector.
      3. Measure the resistance.

         Standard resistance

         RESISTANCE SPECIFICATION



         Tester Connection	Specified Condition
         A4-14 (P) - B35-6 (PL)	Below 1 Ω

   2. M/T:
      1. Disconnect the skid control ECU connector.

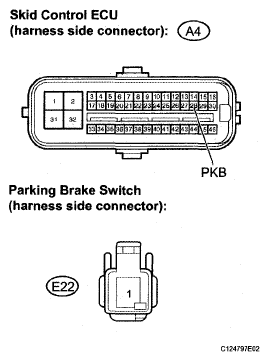

      Fig 2: Identifying Skid Control ECU Connector And Parking Brake Switch Connector
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the parking brake switch connector.
      3. Measure the resistance.

         Standard resistance

         RESISTANCE SPECIFICATION



         Tester Connection	Specified Condition
         A4-28 (PKB) - E22-1	Below 1 Ω

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: Go to next step

5. INSPECT PARK/NEUTRAL POSITION SWITCH (FOR A/T) OR PARKING BRAKE SWITCH (FOR M/T)
   1. Inspect the Park/Neutral Position (PNP) switch (for A/T models).
      1. Disconnect the PNP switch connector.
      Fig 3: Identifying Park/Neutral Position (PNP) Switch Connector Terminals
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check the resistance when the transmission gear selector lever is moved to each position.

         Standard resistance

         RESISTANCE SPECIFICATION



         Gear Selector Lever Positions	Tester Connections	Specified Conditions
         P	2 - 6, 4 - 5	Below 1 Ω
         R	1-2	Below 1 Ω
         N	2 - 9, 4 - 5	Below 1 Ω
         D	2-7	Below 1 Ω
         2	2-3	Below 1 Ω
         L	2-8	Below 1 Ω

   2. Inspect the parking brake switch (for M/T models).
      1. Disconnect the parking brake switch connector.
      Fig 4: Identifying Parking Brake Switch Connector Terminals
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Measure the resistance.

         Standard resistance

         RESISTANCE SPECIFICATION



         Tester Connection	Condition	Specified Condition
         1 - Ground part	Parking brake switch ON (Switch pin released)	Below 1 Ω
         1 - Ground part	Parking brake switch OFF (Switch pin pushed in)	10 kΩ or higher

   NG: REPLACE PARK/NEUTRAL POSITION SWITCH (FOR A/T) OR PARKING BRAKE SWITCH (FOR M/T)

   OK: Go to next step

6. REPLACE YAW RATE AND DECELERATION SENSOR
   1. Replace the yaw rate and deceleration sensor (See REMOVAL  ).
7. PERFORM YAW RATE AND DECELERATION SENSOR ZERO POINT CALIBRATION
   1. Perform the zero point calibration of the yaw rate sensor and deceleration sensor (See CALIBRATION  ).
8. RECONFIRM DTC
   1. Clear the DTCs (See DTC CHECK/CLEAR  ).
   2. Check if the same DTCs are recorded (See DTC CHECK/CLEAR  ).

      Result

      RESULT CHART



      Result	Proceed to
      DTC output	A
      DTC not output	B

   B: END

   A: REPLACE MASTER CYLINDER SOLENOID  (See DISASSEMBLY )
