DTC C1202/52 Brake Fluid Level Low / Open Circuit in Brake Fluid Level Warning Switch Circuit: Wiring Diagram

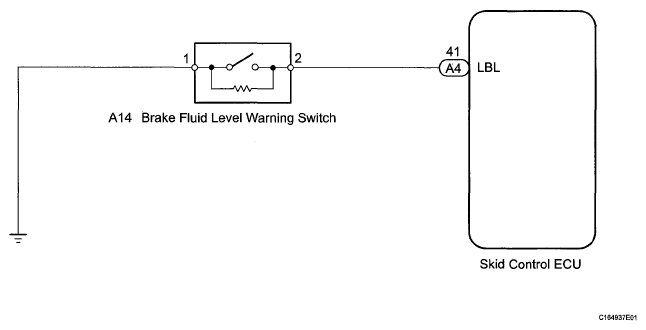

Fig 1: A14 Brake Fluid Level Warning Switch - Wiring Diagram
G05579815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
