Brake Warning Light Remains ON: Wiring Diagram

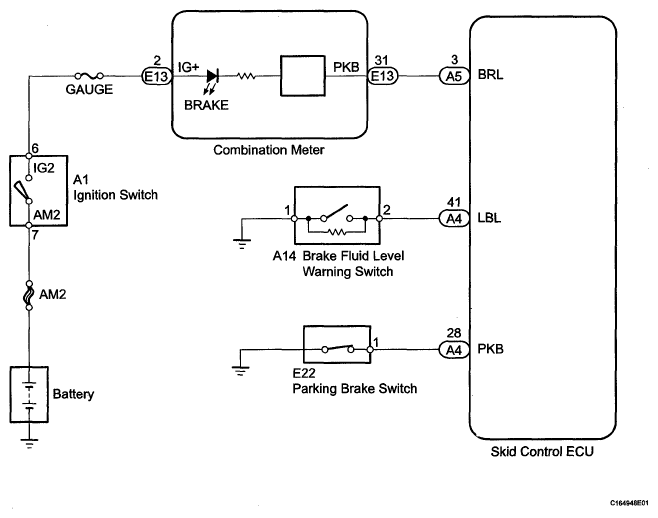

Fig 1: Brake Warning Light - Wiring Diagram

G05579874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
