AUTO LSD Indicator Light Remains ON: Wiring Diagram

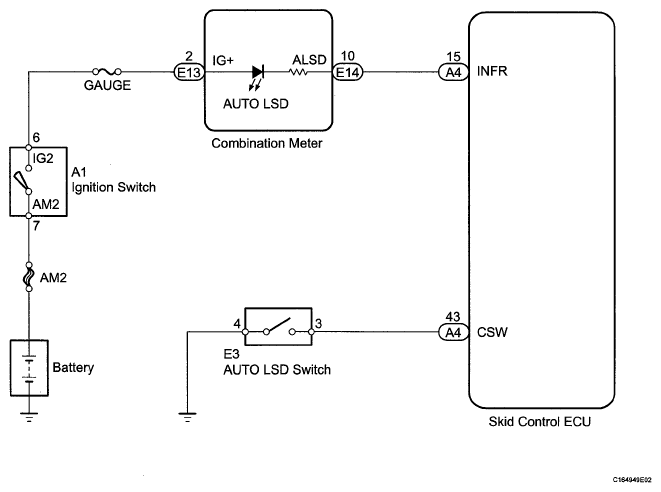

Fig 1: AUTO LSD Indicator Light - Wiring Diagram

G05579899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
