ABS Warning Light Remains ON: Wiring Diagram

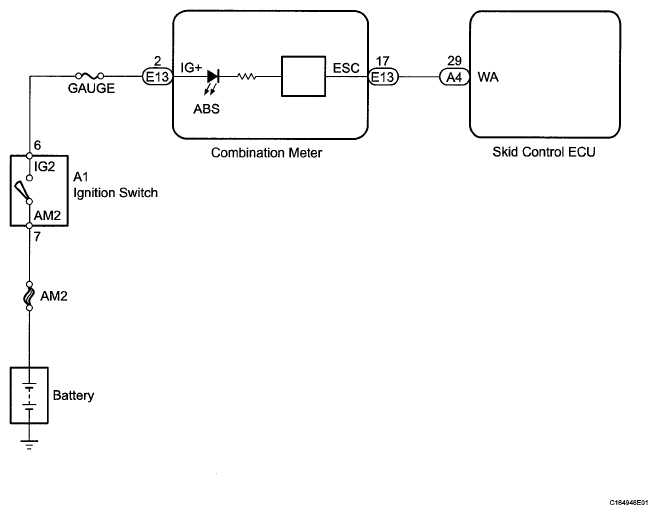

Fig 1: ABS Warning Light - Wiring Diagram

G05579868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
