DTC P2610 ECM / PCM Internal Engine Off Timer Performance: Description

To ensure the accuracy of the EVAP (Evaporative Emission) monitor values, the soak timer, which is built into the ECM, measures 5 hours (+/-15 minutes) from when the ignition switch is turned off, before the monitor is run. This allows the fuel to cool down, which stabilizes the EVAP pressure. When 5 hours have elapsed, the ECM turns on the EVAP System monitor.

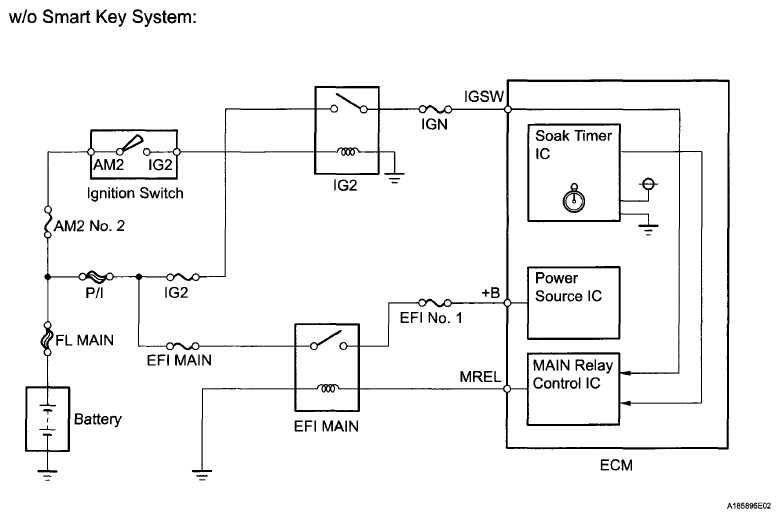

Fig 1: Soak Timer IC And Power Source IC Circuit Diagram (w/o Smart Key System)
G06007954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

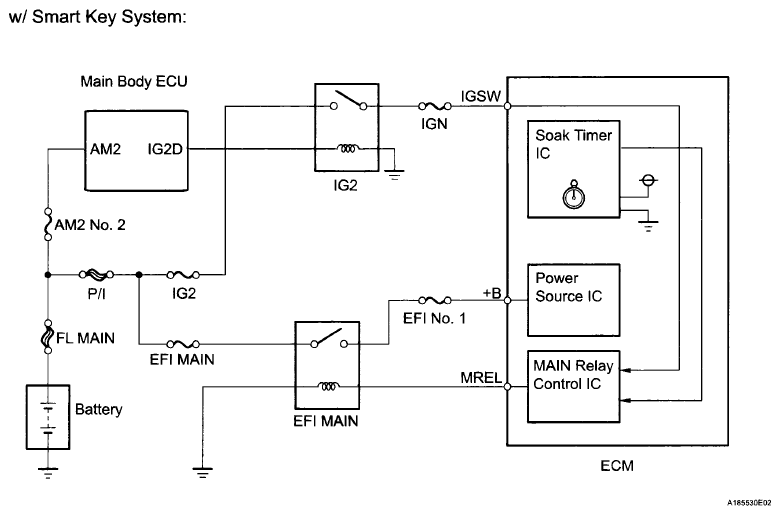

Fig 2: Soak Timer IC And Power Source IC Circuit Diagram (w/ Smart Key System)
G06007955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
