Home >> Toyota >> 2009 >> Corolla Base, 1.8 L, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Power Seat Control System >> System Diagram

System Diagram

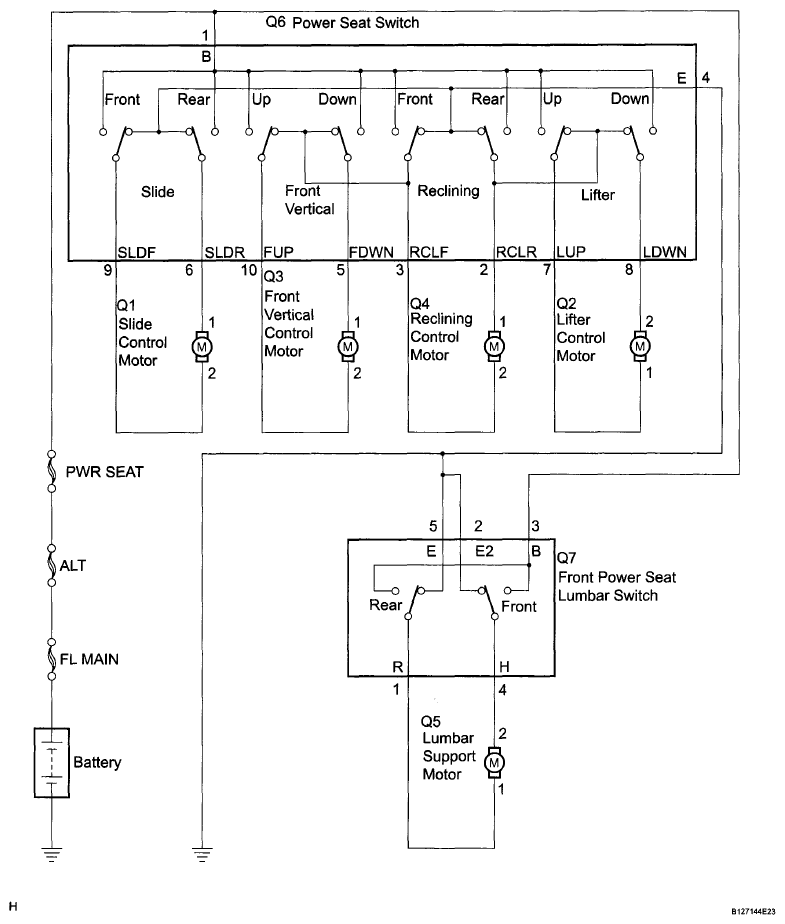

Fig 1: Front Power Seat Control System Diagram

G06014963

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
