Engine Immobiliser System without Smart Key System: Notes

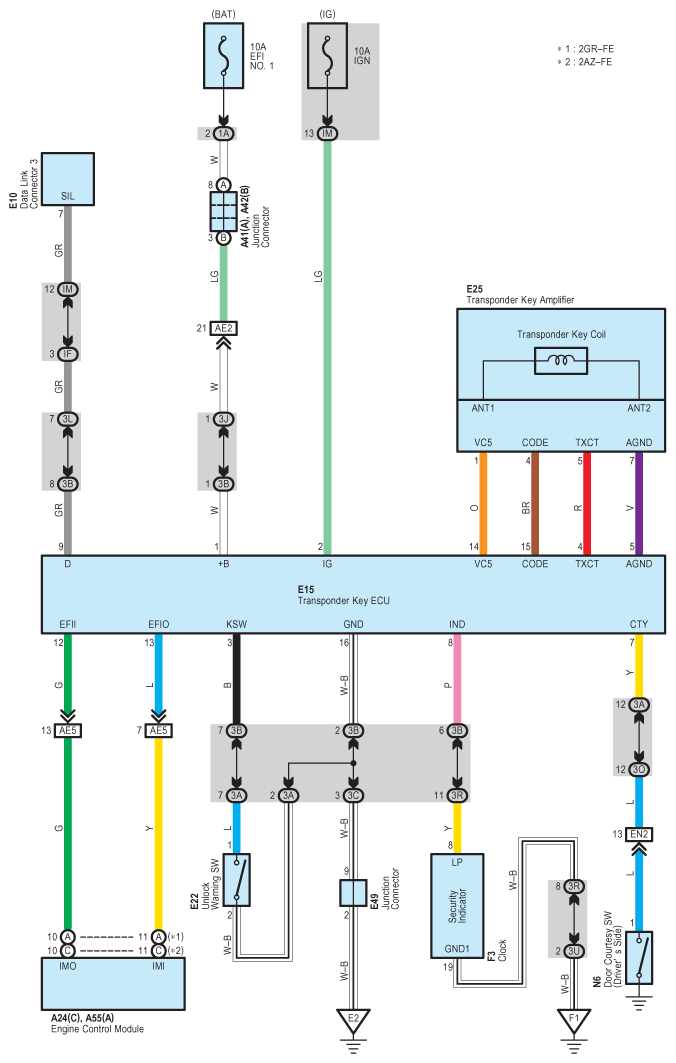

Fig 1: Engine Immobiliser System Without Smart Key System - Circuit Diagram

G07608044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
