Parts Location

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

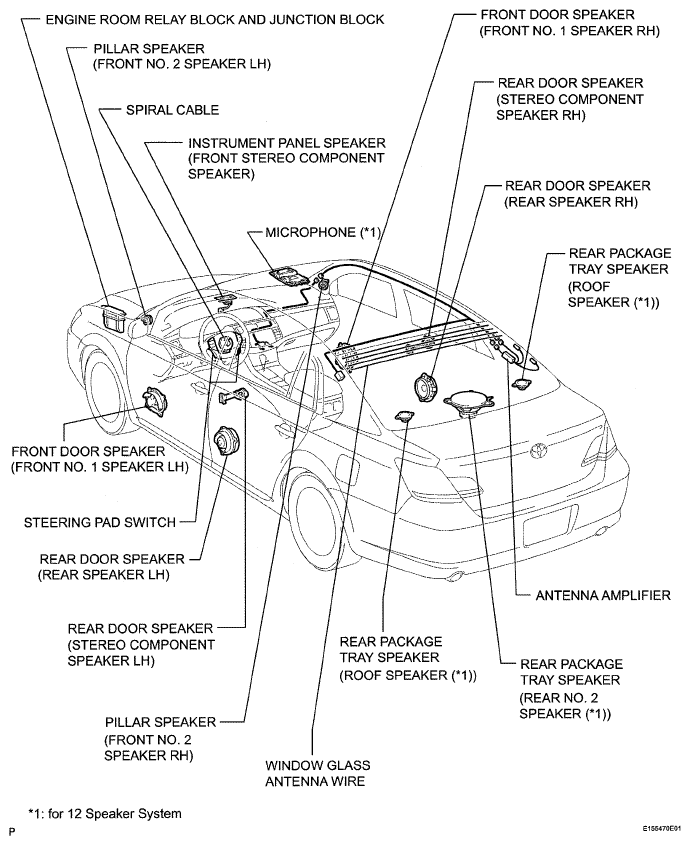

Fig 1: Identifying Audio And Visual System Parts Location (1 Of 2)
G05407709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

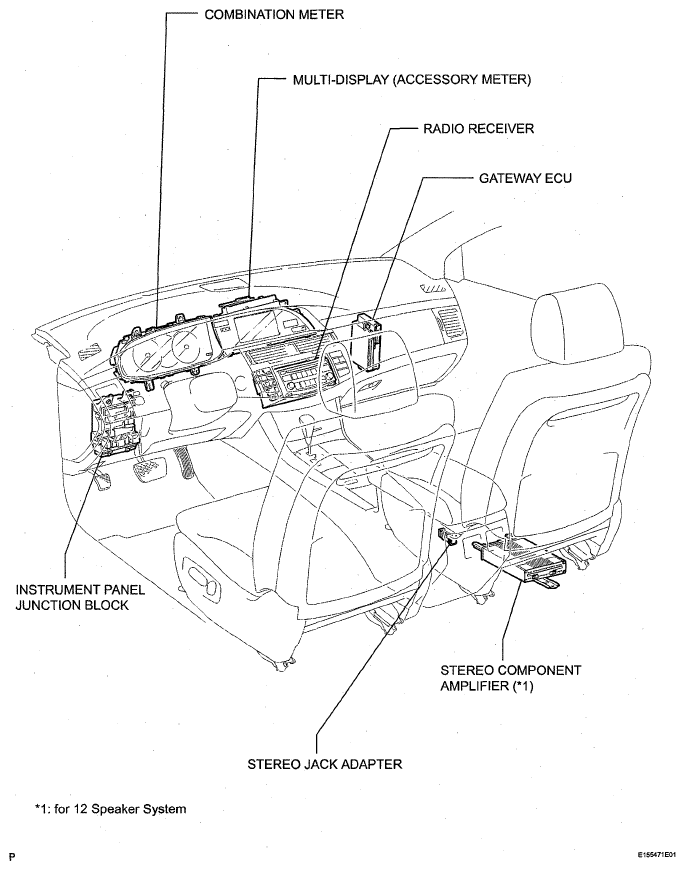

Fig 2: Identifying Audio And Visual System Parts Location (2 Of 2)
G05407710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
