Parts Location

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

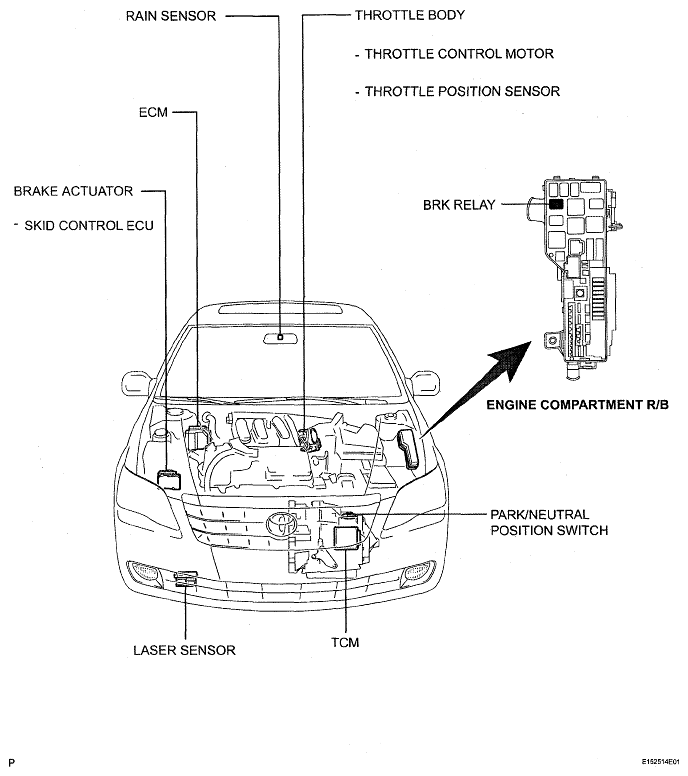

Fig 1: Identifying Dynamic Laser Cruise Control System Part Location (1 Of 2)
G05407283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

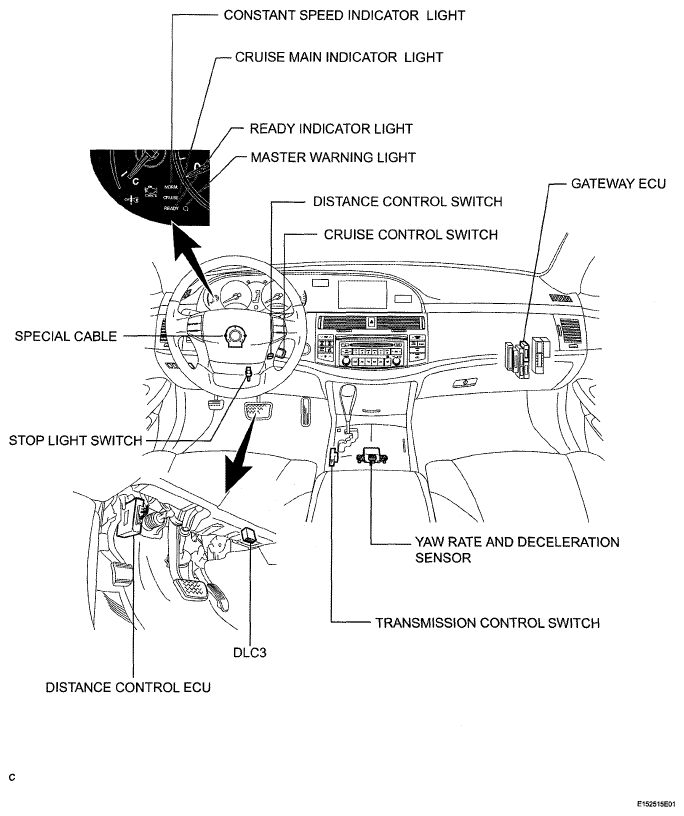

Fig 2: Identifying Dynamic Laser Cruise Control System Part Location (2 Of 2)
G05407284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
