Inspection Procedure

NOTE: When replacing the master cylinder solenoid, perform zero point calibration (See CALIBRATION  ).
  1. INSPECT 4WD CONTROL SWITCH
    1. Check the select 2-4 and high-low system (See INSPECTION ).

      NG: REPLACE 4WD CONTROL SWITCH

      OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (4WD CONTROL SWITCH - BODY GROUND)
    1. Disconnect the 4WD control switch connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION CONDITION CHART

      Tester Connection Condition Specified Condition
      F11-4 (GND) - Body ground Always Below 1 Ω

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)

      Fig 1: Identifying 4WD Control Switch Connector Terminal
      G06129512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (4WD CONTROL ECU - 4WD CONTROL SWITCH)
    1. Disconnect the 4WD control ECU connector and 4WD control switch connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION CONDITION CHART

      Tester Connection Condition Specified Condition
      F9-8 (2-4) - F11-5 (2-4) Always Below 1 Ω
      F9-8 (2-4) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      Fig 2: Identifying 4WD Control ECU Connector Terminal And 4WD Control Switch Connector Terminal
      G06129513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - ECM)
    1. Disconnect the skid control ECU connector.
    2. Disconnect the 4WD control ECU connector.
    3. Disconnect the ECM connector.
    4. Disconnect the A.D.D. actuator connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      w/o A-TRAC Switch

      TESTER CONNECTION CONDITION CHART

      Tester Connection Condition Specified Condition
      S28-26 (EXI3) - E6-8 (4WD) Always Below 1 Ω
      S28-26 (EXI3) - Body ground Always 10 kΩ or higher

      w/ A-TRAC Switch

      TESTER CONNECTION CONDITION CHART

      Tester Connection Condition Specified Condition
      S28-21 (EXI4) - E6-8 (4WD) Always Below 1 Ω
      S28-21 (EXI4) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

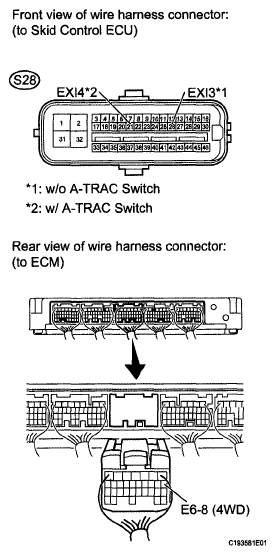

      Fig 3: Identifying S28 Skid Control ECU Connector Terminal
      G06129514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - 4WD CONTROL ECU - A.D.D. ACTUATOR)
    1. Disconnect the skid control ECU connector.
    2. Disconnect the ECM connector.
    3. Disconnect the A.D.D. actuator connector.
    4. Disconnect the 4WD control ECU connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      w/o A-TRAC Switch

      TESTER CONNECTION CONDITION CHART

      Tester Connection Condition Specified Condition
      S28-26 (EXI3) - F10-18 (ADD) Always Below 1 Ω
      S28-26 (EXI3) - A11-3 (ADD) Always Below 1 Ω
      S28-26 (EXI3) - Body ground Always 10 kΩ or higher

      w/ A-TRAC Switch

      TESTER CONNECTION CONDITION CHART

      Tester Connection Condition Specified Condition
      S28-21 (EXI4) - F10-18 (ADD) Always Below 1 Ω
      S28-21 (EXI4) - A11-3 (ADD) Always Below 1 Ω
      S28-21 (EXI4) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

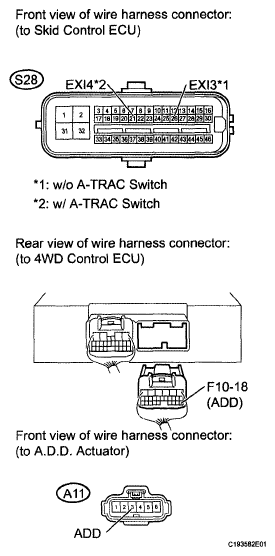

      Fig 4: Identifying S28 Skid Control ECU Connector Terminal
      G06129515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to next step

  6. INSPECT 4WD CONTROL ECU
    1. Disconnect the skid control ECU connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      w/o A-TRAC Switch

      VOLTAGE REFERENCE

      Tester Connection Condition Specified Condition
      S28-26 (EXI3) - Body ground 4WD control switch (4WD) ON (Transfer 4WD position) Below 1.5 V
      S28-26 (EXI3) - Body ground 4WD control switch (4WD) ON (Transfer 2WD position) 10 to 14 V
      Fig 5: Identifying S28 And A11 Skid Control ECU Connector Terminal
      G06129516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/A-TRAC Switch

      TESTER CONNECTION CONDITION CHART

      Tester Connection Condition Specified Condition
      S28-21 (EXI4) - Body ground 4WD control switch (4WD) ON (Transfer 4WD position) Below 1.5 V
      S28-21 (EXI4) - Body ground 4WD control switch (4WD) ON (Transfer 2WD position) 10 to 14 V

      NG: REPLACE 4WD CONTROL ECU

      OK: Go to next step

  7. INSPECT ECM (4WD TERMINAL)
    1. Turn the ignition switch off.
    2. Disconnect the ECM connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      VOLTAGE REFERENCE

      Tester Connection Condition Specified Condition
      E6-8 (4WD) - Body ground 4WD control switch (4WD) ON (Transfer 4WD position) Below 1.5 V
      4WD control switch (4WD) ON (Transfer 2WD position) 10 to 14 V

      NG: REPLACE ECM

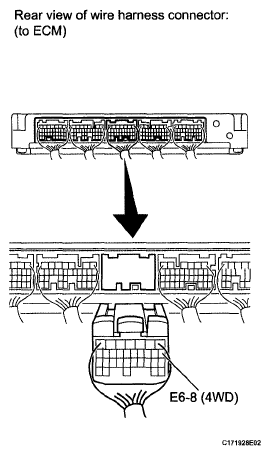

      Fig 6: Identifying ECM Connector Terminal
      G06129517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to next step

  8. INSPECT A.D.D. ACTUATOR
    1. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      w/o A-TRAC Switch

      VOLTAGE REFERENCE

      Tester Connection Condition Specified Condition
      S28-26 (EXI3) - Body ground 4WD control switch (4WD) ON (Transfer 4WD position) Below 1.5 V
      4WD control switch (4WD) ON (Transfer 2WD position) 10 to 14 V

      w/ A-TRAC Switch

      TESTER CONNECTION CONDITION CHART

      Tester Connection Condition Specified Condition
      S28-21 (EXI4) - Body ground 4WD control switch (4WD) ON (Transfer 4WD position) Below 1.5 V
      4WD control switch (4WD) ON (Transfer 2WD position) 10 to 14 V

      NG: REPLACE A.D.D. ACTUATOR

      Fig 7: Identifying S28 And A11 Skid Control ECU Connector Terminal
      G06129516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: REPLACE MASTER CYLINDER SOLENOID  (See DISASSEMBLY )
