Inspection Procedure

1. Disconnect the vacuum hose.
2. Connect the Techstream to the DLC3.
3. Turn the ignition switch ON and turn the Techstream ON.
4. Enter the following menus: Powertrain/Engine and ECT/Active Test/Active the VSV for Intake Control. Operate the VSV for ACIS.
5. Check the VSV operation when it is operated using the Techstream.

   Standard

   ACTIVE TEST CHART



   Tester Operation	Specified Condition
   VSV ON	Air from port E flows out through port F
   VSV OFF	Air from port E flows out through air filter

   Fig 1: Checking VSV Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result

   RESULT CHART



   Result	Proceed To
   NG	A
   OK	B

6. Reconnect the vacuum hose.

B :  Go to step  4

A : Go to next step.

1. Inspect VSV for ACIS. (See ON-VEHICLE INSPECTION ).

NG : REPLACE VSV FOR ACIS

OK : Go to next step.

1. Check the wire harness and connectors between the VSV for ACIS and ECM.
   1. Disconnect the D61 VSV for ACIS connector.
   2. Disconnect the D74 ECM connector.
   3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Condition	Specified Condition
      D61-2 - D74-62 (ACIS)	Always	Below 1 Ω

      Standard resistance (Check for short)

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Condition	Specified Condition
      D61-2 or D74-62 (ACIS) - Body ground	Always	10 kΩ or higher

   4. Reconnect the VSV for ACIS connector.
   5. Reconnect the ECM connector.
2. Check the wire harness between the VSV for ACIS and EFI NO. 2 fuse.
   1. Disconnect the D61 VSV for ACIS connector.
   2. Remove the EFI NO. 2 fuse from the engine room relay block.
   3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Condition	Specified Condition
      D61-1 - EFI NO. 2 fuse	Always	Below 1 Ω

   4. Reconnect the VSV for ACIS connector.
   5. Reinstall the EFI relay.

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

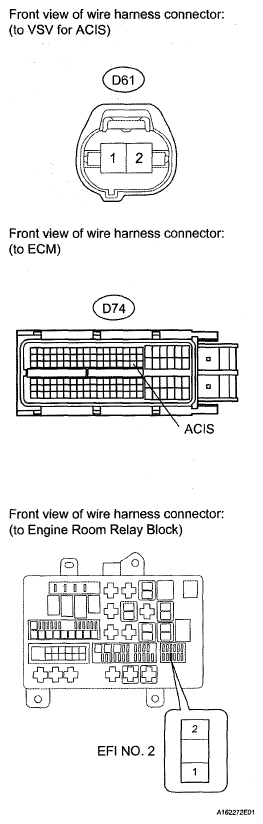

Fig 2: Checking Harness & Connector (VSV For ACIS - ECM, VSV For ACIS - EFI No. 2 Fuse)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to next step.

1. Check that the vacuum hose is connected correctly.
2. Check the vacuum hose for looseness and disconnection.
3. Check the vacuum hose for cracks, holes and damage.

NG : REPAIR OR REPLACE VACUUM HOSES

OK : Go to next step.

1. Check that the lever moves when a vacuum of 26.6 kPa (200 mmHg, 7.85 in.Hg) is applied with the vacuum gauge on.

   OK: Lever moves

2. Check that the vacuum of 26.6 kPa (200 mmHg, 7.85 in.Hg) is sustained for 1 minute in the above state.

   OK: Vacuum is sustained

   Fig 3: Inspecting Intake Air Control Valve (Intake Air Surge Tank)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE INTAKE AIR SURGE TANK (INTAKE AIR CONTROL VALVE)  . (See VACUUM SWITCHING VALVE (FOR ACIS) ).

OK : REPLACE ECM  . (See REMOVAL ).
