Throttle Body: Components

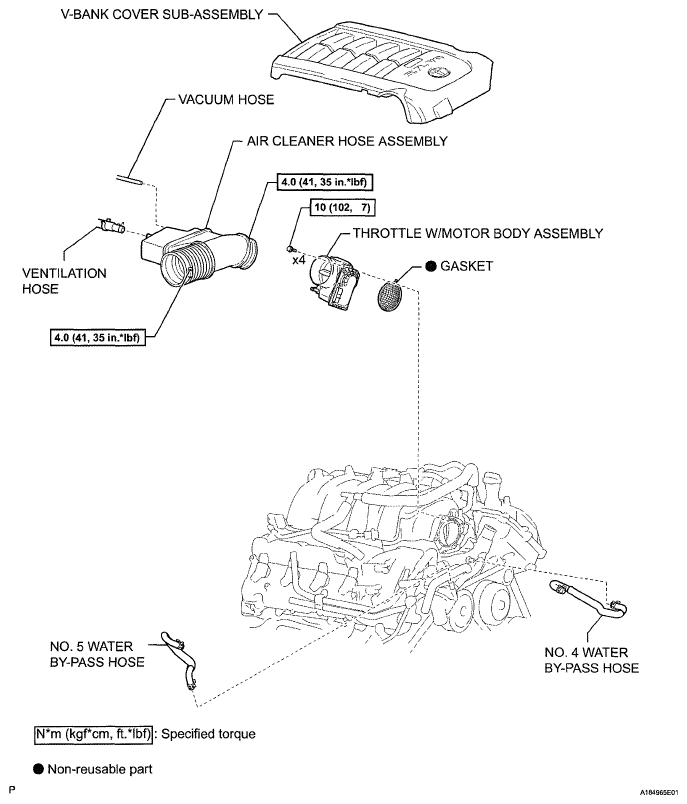

Fig 1: Identifying Throttle Body Components
G05644739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
