Engine Control System (3UR-FE) - Circuit Testing, Component On-Vehicle Inspection, Removal, Inspection & Installation: ECM: Components

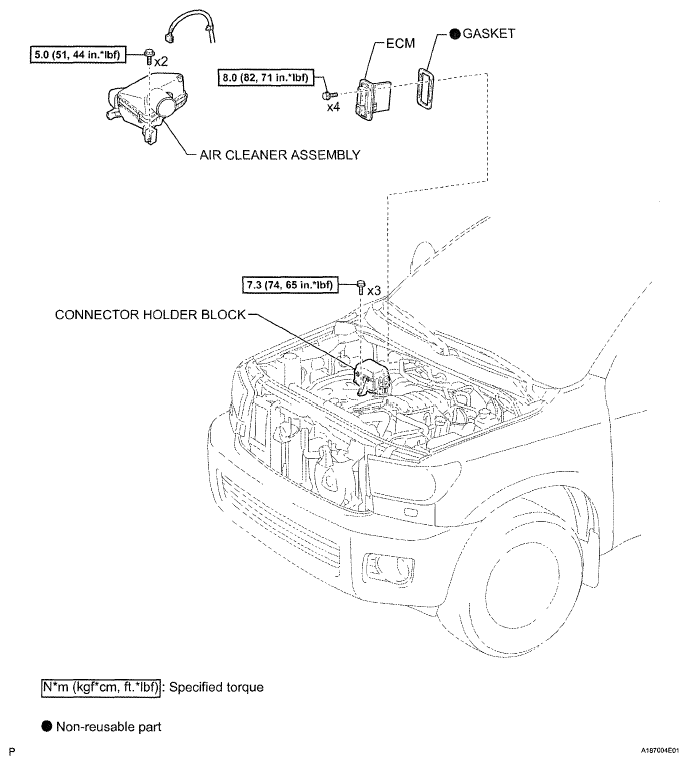

Fig 1: Identifying ECM Components
G05644746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
