Inspection Procedure

  1. INSPECT FUSES (AM2, IG2 MAIN, EFI NO. 1, IGN)
    1. Remove the AM2 fuse, IG2 MAIN fuse, EFI NO. 1 fuse and IGN fuse from the engine room relay block.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE

      Tester Connection Condition Specified Condition
      AM2 fuse Always Below 1 Ω
      IG2 MAIN fuse Always Below 1 Ω
      EFI NO. 1 fuse Always Below 1 Ω
      IGN fuse Always Below 1 Ω

    NG: CHECK FOR SHORT IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

    Fig 1: Identifying AM2 Fuse, IG2 MAIN Fuse, EFI NO. 1 Fuse And IGN Fuse
    G05644672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  2. INSPECT RELAY (IG2, EFI MAIN)
    1. Remove the integration relay from the engine room relay block.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE

      Tester Connection Condition Specified Condition
      1C-1 -1B-8 When no battery voltage is applied to terminals 1B-6 and 1B-7 10 kΩ or higher
      1C-1 -1B-8 When battery voltage is applied to terminals 1B-6 and 1B-7 Below 1 Ω
      1C-1 -1B-4 When no battery voltage is applied to terminals 1B-2 and 1B-3 10 kΩ or higher
      1C-1 -1B-4 When battery voltage is applied to terminals 1B-2 and 1B-3 Below 1 Ω

    NG: REPLACE RELAY

    Fig 2: Identifying Integration Relay Connector Terminals
    G05644673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK

  3. CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
    1. Disconnect the ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE

      Tester Connection Condition Specified Condition
      D56-81 (E1)-Body ground Always Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 3: Identifying ECM Connector Terminals
    G05644674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step.

  4. INSPECT ECM (IGSW VOLTAGE)
    1. Disconnect the ECM connectors.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      STANDARD VOLTAGE

      Tester Connection Switch Condition Specified Condition
      A27-28 (IGSW) - D56-81 (E1) Ignition switch ON 11 to 14 V

    NG: Go to step 5

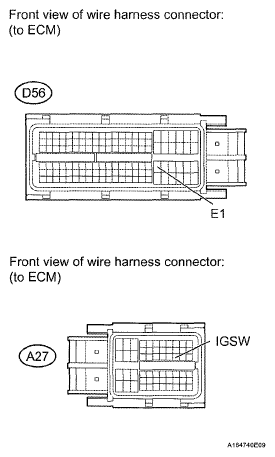

    Fig 4: Identifying ECM Connector Terminals
    G05644675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE ECM  (See REMOVAL  )

  5. CHECK HARNESS AND CONNECTOR (RELAY BLOCK - ECM, IGNITION SWITCH, BATTERY AND BODY GROUND)
    1. Disconnect the ECM connector.
    2. Disconnect the ignition switch connector.
    3. Disconnect the cable from the battery positive (+) terminal.
    4. Remove the AM2 fuse and integration relay.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE

      Tester Connection Condition Specified Condition
      A27-28(IGSW) - 1B-8 Always Below 1 Ω
      1B-7 - Body ground Always Below 1 Ω
      Positive (+) battery cable - 1C-1 Always Below 1 Ω
      Positive (+) battery cable - AM2 fuse terminal 1 Always Below 1 Ω
      H10-5 (AM2) - AM2 fuse terminal 2 Always Below 1 Ω
      H10-6(IG2) - 1B-6 Always Below 1 Ω
      A27-28(IGSW) or 1B-8-Body ground Always 10 kΩ or higher
      Positive (+) battery cable or AM2 fuse terminal 1 - Body ground Always 10 kΩ or higher
      Positive (+) battery cable or 1C-1 - Body ground Always 10 kΩ or higher
      H10-5(AM2) or AM2 fuse terminal 2 - Body ground Always 10 kΩ or higher
      H10-6(IG2) or 1B-6-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

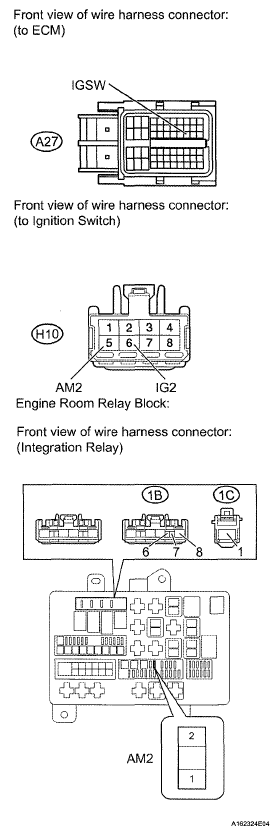

    Fig 5: Identifying ECM And Ignition Switch Connector Terminals
    G05644676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step.

  6. INSPECT IGNITION SWITCH  (See INSPECTION PROCEDURE )

    NG: REPLACE IGNITION SWITCH  (See REMOVAL )

    OK: Go to Next Step.

  7. CHECK HARNESS AND CONNECTOR (INTEGRATION RELAY - ECM, BATTERY AND BODY GROUND)
    1. Disconnect the ECM connector.
    2. Disconnect the cable from the battery positive terminal.
    3. Remove the integration relay from the engine room relay block.
    4. Disconnect the integration relay connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE

      Tester Connection Condition Specified Condition
      A27-3(+B) - 1B-4 Always Below 1
      A27-2(+B2) - 1B-4 Always Below 1
      A27-34(MREL) - 1B-2 Always Below 1
      1C-1 - Positive (+) battery cable Always Below 1
      1B-3 - Body ground Always Below 1
      A27-3(+B) or 1B-4-Body ground Always 10 k or higher
      A27-2(+B2) or 1B-4-Body ground Always 10 k or higher
      A27-34(MREL) or 1B-2-Body ground Always 10 k or higher
      1C-1 or Positive (+) battery cable - Body ground Always 10 k or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 6: Identifying ECM And Integration Relay Connector Terminals
    G05644677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPAIR OR REPLACE ENGINE ROOM RELAY BLOCK
