Camshaft Position Sensor: Components

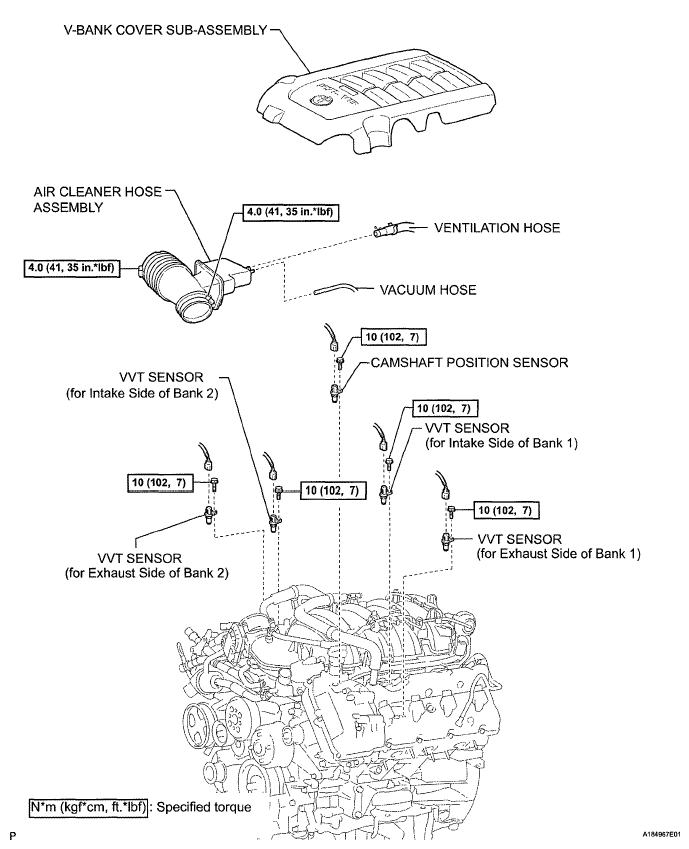

Fig 1: Identifying Camshaft Position Sensor Components

G05644767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
