Home >> Toyota >> 2008 >> Sequoia Platinum, RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control/Dynamic Control Systems >> Vehicle Stability Control System >> AUTO LSD Indicator Light Remains ON >> Wiring Diagram

AUTO LSD Indicator Light Remains ON: Wiring Diagram

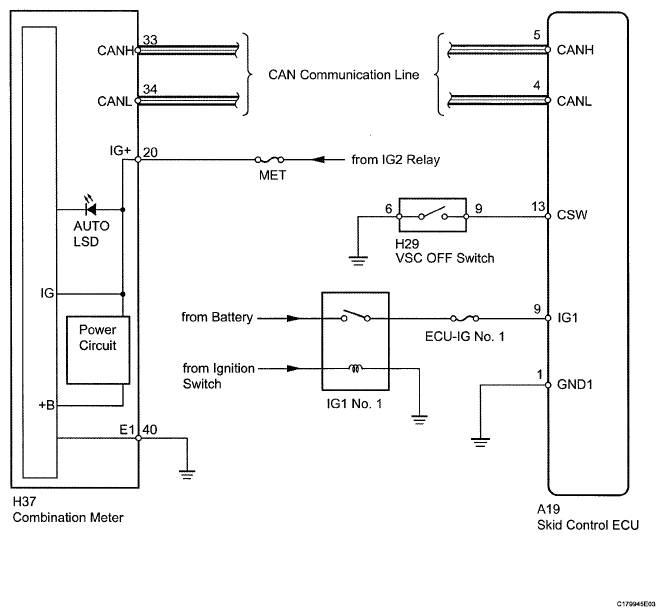

Fig 1: Combination Meter And Skid Control ECU - Wiring Diagram
G05649572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
